Hubbell Hubbell WS2000NI
Hubbell WS2000NI
Kirby Risk #: 2921866
UPC: 78358525632, 783585256320, 00783585256320, 30783585256321
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Lighting Controls, Occupancy/VacancySensors, Wall Switch, Passive Infrared Technology, 120/277V AC, WithNight Light, Ivory
Modified Industry Description
OCC/VAC
AD Description

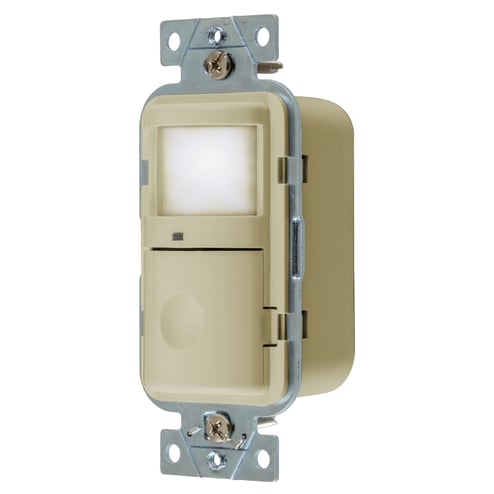

Wiring Device-Kellems tradeSELECT™ WS2000NI Occupancy Sensor Switch With Night Light, 120/277 VAC, Passive Infrared Sensor, 1200 sq-ft Coverage, Wall Mount
Vendor Description
Requires a clear, unobstructed line of sight for detection, because it senses occupancy as movement of heat emitted from the body against the background space. A segmented Fresnel lens divides a coverage area into zones. Movement across zones is interpreted as occupancy. Excellent for small room control.
Specifications
| Application |
Compatible with most LED and CFL
|
|---|---|
| Color |
Ivory
|
| Country of Origin |
TW
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Length1 |
4.9000
|
| Material |
ABS (Acrylonitrile butance styrene - Thermoplastic polymer)
|
| Mounting |
Mounting Screws
|
| Operating_Temperature |
32°F to 122°F (0°C to 50°C) with rate of change not exceeding 20°F(11°C) per hour
|
| Series |
Passive Infrared
|
| Size |
4.15 X 1.82 X 1.62
|
| Special Features |
|
| Standard |
cULus Listed To UL773A
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Manual/Auto
|
| Voltage Rating |
120/277
|
