Hubbell Hubbell HBL5262WR


Description

Industry Description

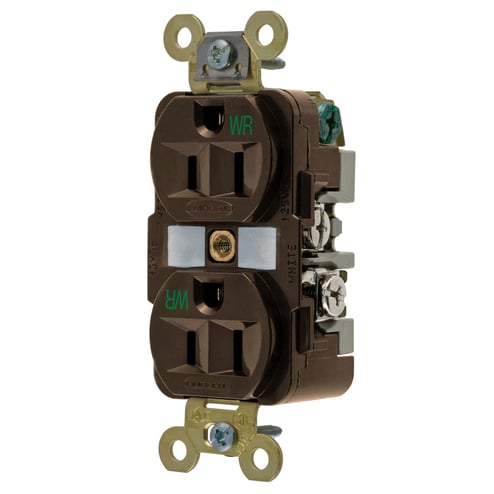

Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Weather-Resistant Duplex, Industrial Grade, 15A 125V, 2-Pole 3-WireGrounding, 5-15R, Brown, Single Pack

AD Description

Wiring Device-Kellems HBL5262WR Grounding Extra Heavy Duty Straight Blade Duplex Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Brown

Specifications

Amperage Rating
15
Application
Extra Heavy Duty
Color
Brown
Connection
Back and Side Wired
Conductor Size
#14 AWG to #12 AWG
Country of Origin
PR
Environmental_Conditions
Weather resistant
Length1
4.1600
Material
Thermoplastic
Mounting
Screw Mount
NEMA_Rating
5-15R
Number_Of_Poles
2
Phase
1
Series
Extra Heavy Duty
Size
Standard Sized Product
Special Features

  • 0.037 in brass power contact
  • 0.05 in brass mounting strap
  • 14 to 10 AWG copper stranded or solid conductor only terminal accommodation
  • Certified for current interrupting at full rated current
  • Deep body design with circuit inside diameter face
  • Finder groove face style
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
  • NO 10 to 32 silicon bronze terminal screw and ground screw
  • Nylon top and reinforced PET base
  • One piece brass integral ground strap
  • Ratings are a permanent part of the device product identification
  • Stainless steel auto ground clip and brass clamp
  • Steel, zinc plated mounting screws
  • Terminals identified in accordance with UL498
  • Traditional face shape
  • UL 94V-2 top, UL 94V-0 base flammability
  • Weather resistance complies with national electrical code requirements
  • Weather resistant
  • Withstand 2000 VAC minimum dielectric voltage
Standard
NEMA WD1 and WD5, UL 498
Sub_Brand
Straight Blade Devices
Type
Traditional Duplex
Voltage Rating
125
Wattage
1875
