Hubbell Hubbell HBL15FBL


Description

Industry Description

Hubbell Wiring Device Kellems, Single Pole Products, Female Plug, 150Amp Series, Blue

Modified Industry Description

SINGLE POLE SER. 15 FEM PLUG, 150A,

AD Description

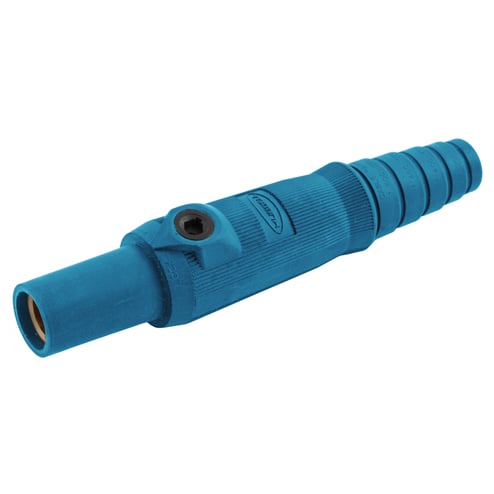

Wiring Device-Kellems HBL15FBL 15 Series Female Insulated Standard In-Line Plug With SC/PPC Cord, 600 VAC/250 VDC, 150 A, 8 to 2 AWG Wire, Set Screw

Vendor Description

Hubbell wiring Device-Kellems offers a full line of innovative, high quality, series 15 single pole plugs, single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve. UL enclosure Types 3R, 4X and 12 rating suitable for use in almost any environment.

Specifications

Amperage Rating
150
Application
Temporary Electrical Power
Brand Name
Hubbell
Color
Blue
Conductor Range
#8-2 AWG SC/PPC Wire
Connection
Set Screw
Country of Origin
CN
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Material
Brass and Non-Metallic
Mounting
Cord Mounted
NEMA_Rating
Non-NEMA
Number_Of_Poles
1
Size
Standard
Special Features

  • Easily Identifiable cable with cut off points for secure fit
  • Extra long non-conductive inner sleeve
  • Nylon retaining screw materia
  • Turn and lock symbol aids in the mating of devices
Standard
cULus
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type
Female Plug
Voltage Rating
600//250
