Hubbell Hubbell DT5030W

Name: Hubbell DT5030W
Brand: Hubbell
SKU: 2917630
Price: 89.31 USD
Availability: InStock

Hubbell DT5030W

Kirby Risk #: 2917630

UPC: 78358525641, 783585256412, 00783585256412, 30783585256413

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Hubbell

Description

Industry Description

Hubbell Wiring Device Kellems, Timer Switches, Single Pole, 8.3A120/277VAC, 30 Minute Delay Time Out, White

Modified Industry Description

TIMER 30MIN, 8.3A 120/277V , WHITE

AD Description

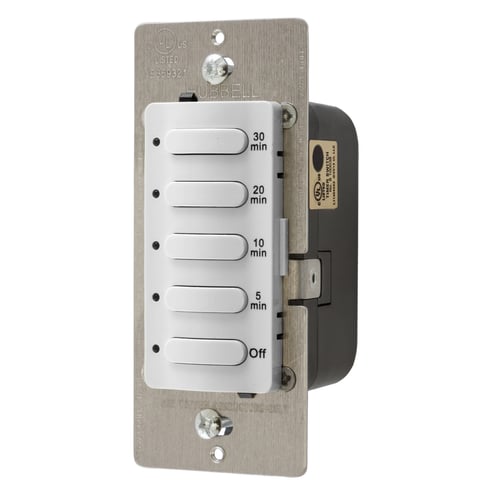

Wiring Device-Kellems DT5030W Countdown Fixed Standard Timer Wall Switch With Red LED Indicator, 30 min Time Setting, 120/277 VAC, 1 Pole

Action	Push Button
Amperage Rating	8.3
Application	Wall Mounted
Connection	Terminal Screws
Country of Origin	CN
Environmental_Conditions	Indoor Use Only
Length1	4.6000
Material	Plastic
Mounting	Screw Mount
Mounting_Type	Panel/Surface
Number_Of_Poles	1
Operating_Temperature	32 Degrees F to 104 Degrees F (0 Degrees C to 40 Degrees C)
Series	Fixed Countdown
Size	Standard Sized Product
Special Features	30 min timer 6 in 14 AWG copper wire leads Alert to off function - red LED will flash during the final 30 sec Aluminum mounting bracket Designed for use on 120 or 277 VAC circuits LED Indicators illuminates once time is selected Manual override to off Polycarbonate housing Pre-set 5 button selection with permanent time markings Steel mounting strap
Standard	UL20
Sub_Brand	Hubbell Wiring Device-Kellems
Temperature_Rating	32 to 122
Type	Count Down
Voltage Rating	120/277
Wattage	2,300
