Cooper Lighting Cooper Lighting APC7R


Description

Industry Description

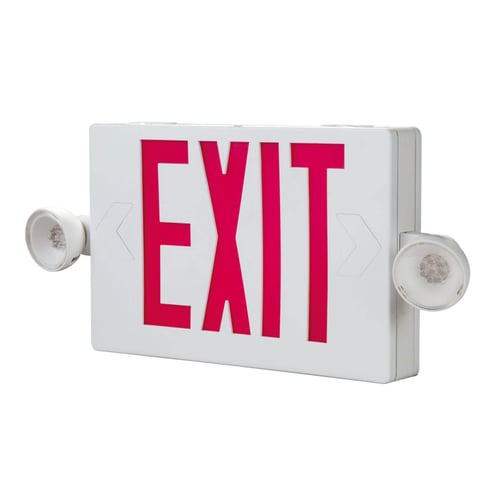

Combo Unit, White Housing, Led-Exit, (2) LED Emergency Light Heads, Universal Face Red Letters

Modified Industry Description

COMBO UNIT, WHITE HOUSING,

AD Description

EATON ALL-PRO™ Emergency APC7R Combo Universal Emergency Exit Lamp With (2) LED Heads, LED Lamp, 1.31/1.68 W Fixture, 120/277 VAC, Textured Housing, EXIT Legend

Vendor Description

The ALL-PRO™ series is the most economical LED combo (including LED emergency light heads) for general purpose applications. The durable, injection molded, thermoplastic material resists discoloration due to UV radiation and the energy efficient, low maintenance LEDs provide bright illumination. All AP Series combos offer universal configurations (single and double face) and have universal mounting capability (ceiling, wall, end).

Specifications

Amperage Rating
0.09
Application
Lighting
Battery
Nickel Cadmium
Battery_Runtime
90 Minutes
Brand Name
Cooper Lighting
Color
White
Country of Origin
CN
Fixture_Type
Emergency Exit Combination Light
Lamp_Type
LED
Lamp_Wattage
0.78
Legend
EXIT
Lumens
100
Material
Thermoplastic
Mounting
Surface Mount
Number_Of_Lamps
1
Size
2.25 IN Length 12.75 IN Width 7.875 IN Height
Special Features

  • 0.12/0.07 power factor
  • 1.31/1.68 W input power
  • 10 to 40 deg C operating temperature
  • 3.6 VDC, 0.78 W DC long lasting LED heads
  • 60 Hz frequency
  • All components are injection molded, color stable, high impact thermoplastic material
  • All components including battery and electronics are located inside the exit housing, snap-fit canopy with captive mounting screws included with all exits
  • Brownout protection
  • Components are of snap-fit construction to facilitate under 5 min installation reinforcing ribs throughout to provide maximum strength
  • Designer white textured finish standard
  • Low-Voltage disconnect
  • Molded-in wireways facilitate internal wire routing and connections
  • Overload/short circuit protection
  • Red letter color
  • Sealed Ni-Cd battery
  • Solid state voltage limited charger
  • Test switch/power indicator light
  • Universal face red letters
Standard
UL924 Listed; Damp Location
Sub_Brand
Cooper Lighting
Type
Combo Universal
Voltage Rating
120 to 277
Wattage
780m
