Lithonia Lighting Lithonia Lighting IBZT5 4 CS93W


Description

Industry Description

Contractor Select Fluorescent High Bay - T5HO, Four lamps, 600V SO white cord, no plug (no voltage required), SKU - 205W81

Modified Industry Description

FLUORESCENT HIGH BAY (IBZ), 4

AD Description

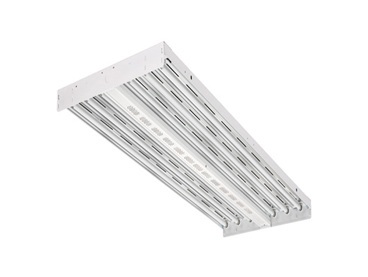

Lithonia Lighting® I-BEAM® IBZT5 4 CS93W Contractor Select Narrow Distribution High Bay Lighting, (4) T5 Fluorescent Lamp, 120 to 277 VAC, High Gloss/Baked White Enamel Housing

Vendor Description

The I-BEAM® fluorescent high Bay™ is an ideal one for one replacement of common metal halide high Bay™ systems. The fluorescent I-BEAM® fixture performs at mounting heights from 15 to 40 ft. Certain airborne contaminants can diminish integrity of acrylic.

Specifications

Application
Atrium, Auditorium, Manufacturing, Sports and Recreation, Warehouse/Storage
Color
White
Country of Origin
MX
Dimensions
48-1/8 in L x 13-1/4 in W x 2-3/8 in D
Lamp_Type
T5 Fluorescent
Length1
49.5000
Material
Steel
Mounting
Not Applicable
Mounting_Type
Suspended
Series
IBZ
Special Features

  • 600 VAC so white cord, no plug (no voltage required)
  • Access plate on the back of channel housing allows for quick and easy wiring
  • AWM, TFM or THHN® wire used throughout rated for required temperature ranges, ballast disconnect (BDP) is standard unless EL14 or cordset is requested
  • Channel is formed of heavy duty code gauge steel to stand-up to the most demanding elements
  • Channel is high gloss white baked enamel, five stage iron phosphate pretreatment ensures superior paint adhesion and rust resistance
  • IBZ fixtures can be factory wired to have both sensors and cord sets, further reducing installation time
  • In addition to the reliable operation of IBZ fixtures, the reflectors tightly control the distribution of light and effectively manage lamp heat to increase the overall efficiency
  • Installation is made quick and easy with IBZ hanging accessories such as the aircraft cable and single point mounting bracket
  • It is a one for one replacement of common metal halide high Bay™ systems
  • Lamp holder assembly protects from incidental damage or movement of sockets during handling and installation
  • Lamp holders (sockets) are manufactured from PBT (polybutylene terephthalate) material for increased chemical resistance along with secure positioning rotating collars and enclosed contacts
  • Suitable for suspension by chain, cable, surface mounting bracket, hook monopoint or single (pendant) monopoint installation
  • The configurability, performance and ease of installation make IBZ fixtures the preferred choice for fluorescent high Bay™ lighting
  • The easy access ballast channel houses the proprietary cool Running™ plus technology, which is the most advanced fluorescent ballast technology available for fluorescent high Bay™ lighting
  • The highly configurable design of the IBZ high Bay™ allows for a multitude of fixture options that can either be factory or field installed
  • The I-BEAM® IBZ fluorescent high Bay™ is ideal for new construction and renovation projects
  • The IBZ fixture performs well at mounting heights from 15 to 40 ft
  • The unique cool Running™ Plus™ technology provides industry leading, trouble-free operation in ambient temperature ranges up to 155 deg F
  • Thermally protected, resetting, class P, HPF, a sound rated electronic ballast
Standard
C-UL-US
Type
Contractor Select Narrow Distribution
Voltage Rating
120 to 277
