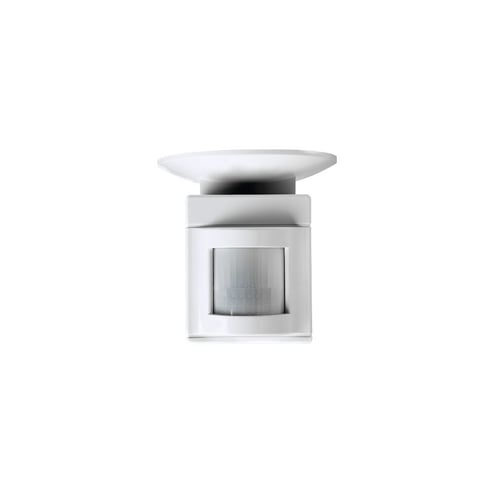

Sensor Switch Sensor Switch NWV PDT 16
Sensor Switch NWV PDT 16
Kirby Risk #: 2627795
UPC: 74597592196, 00745975921966
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Sensor Switch
Description
Industry Description
nLight wide view sensor, Dual Technology, 16 amps, SKU - 184MCF
Modified Industry Description
Corner Mount 120 DEGREE Wide View Sensor
AD Description
Sensor Switch™ nLight® Sensor Switch® NWV PDT 16 Wide View Occupancy Sensor, 12 to 24 VAC/VDC, PDT Sensor, 40 to 70 ft Coverage, 120 deg, Surface Mount
Vendor Description
The nLight® nWV 16 series wide view occupancy sensor is designed to mount in a corner and detect small motions up to 40 ft (12.19 m) away and larger motions up to 70 ft (21.34 m) away, This makes it ideal for 30 ft x 30 ft (9.14 m x 9.14 m) classrooms or corridors up to 70 ft (21.34 m)long, The enclosure™s convenient tilting feature enables the sensor to be mounted at any height from 8 to 10 ft (2.44 to 3.05 m), When corner or wall mounting is not possible, the WV BR bracket accessory can be used to mount the nWV 16 to the ceiling. Additionally, the nWV 16 may be used in combination with other nLight® sensors to customize coverage for very large or irregularly shaped spaces.
Specifications
| Amperage Rating |
3
|
|---|---|
| Application |
Classroom, Corridor, Open Office, Private Office, Restroom
|
| Brand Name |
Sensor Switch
|
| Color |
White
|
| Country of Origin |
MX
|
| Coverage1 |
40 to 70
|
| Environmental_Conditions |
Indoor
|
| Finish |
Gloss
|
| Material |
Plastic
|
| Mounting |
Surface
|
| Mounting_Type |
Surface
|
| Special Features |
|
| Standard |
cUL, UL
|
| Sub_Brand |
Sensor Switch
|
| Temperature_Rating |
-10 to 85
|
| Type |
Occupancy sensor
|
| Voltage Rating |
12 to 24
|
| Wattage |
Not Applicable
|
