Crouse-Hinds Crouse-Hinds EYS56 SA


Description

Industry Description

1-1/2 NPT THRU MALE/FEMALE ALUMINUM VERTICAL/HORIZONTAL SEAL FITTING

Modified Industry Description

1-1/2 NPT THRU MALE/FEMALE ALUM

AD Description

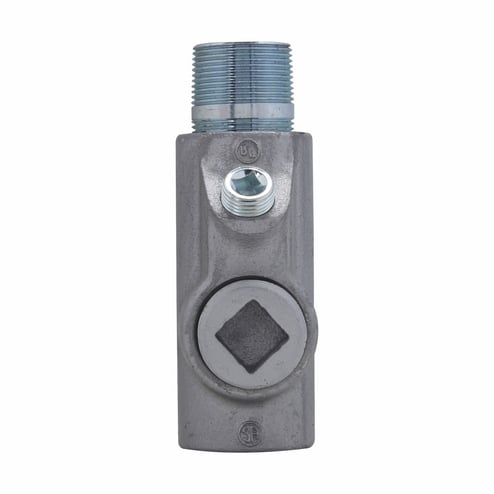

Crouse-Hinds EYS56 SA Male/Female Hub Conduit Sealing Fitting, 1-1/2 in NPT, For Use With Vertical/Horizontal Positions, Copper Free Aluminum, Electro-Galvanized

Vendor Description

EATON's Crouse-Hinds series is designed to the highest standard of safety and productivity to keep people safe and plants running reliably. The more demanding the environment, the likelier you are to find EATON products at the center of operations.

Specifications

Application
Conduit System
Class
A
Connection
Male Threaded, Female Threaded
Country of Origin
MX
Dimensions
2-7/16 in W x 5-1/2 in H
Enclosure
Class I Div 1 2 Group C D, Class II Div 1 2 Group E F G, Class III
Finish
Electro-Galvanized
Length1
2.4380
Material
Copper Free Aluminum
Series
EYS 116
Size
1-1/2 in NPT
Special Features

  • 10-3/4 cu-in for vertical position
  • 12-1/4 cu-in for horizontal position
  • 2-1/16 in turning radius
  • Integral bushings in conduit hubs to protect conductor insulation from damage
  • Large openings with threaded closures to provide easy access to conduit hubs for making dams
  • Limit explosions to the sealed OFF enclosure
  • Minimum turning radius
  • Restrict the passage of gases, vapors or flames from one portion of the electrical installation to another at atmospheric pressure and normal ambient temperatures
  • Taper-tapped hubs to ensure ground continuity
Standard
UL 886, CSA C22.2
Sub_Brand
Eaton Crouse-Hinds
Type
Male/Female Hub
