Crouse-Hinds Crouse-Hinds EYD66 SA


Description

Industry Description

2 NPT THRU MALE/FEMALE ALUMINUM DRAIN SEAL

Modified Industry Description

2 NPT THRU MALE/FEMALE ALUM DRAIN

AD Description

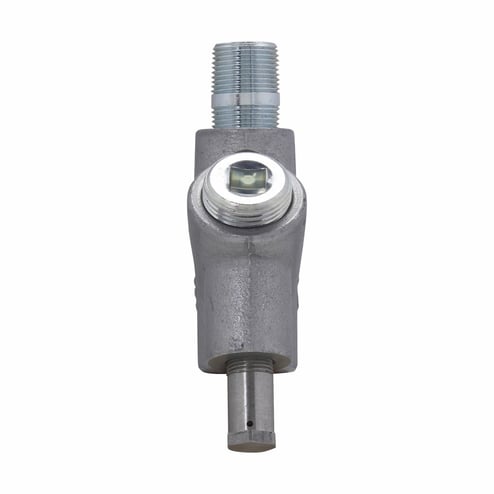

Crouse-Hinds Condulet® EYD66 SA Dust-Ignitionproof Explosionproof Male/Female Hub Conduit Sealing Fitting With Drain, 2 in NPT, For Use With Vertical Position Conduit System, Copper Free Aluminum, Natural

Specifications

Application
Conduit System
Class
A
Country of Origin
MX
Dimensions
6-1/4 in H x 3 in W
Finish
Natural
Length1
6.1000
Material
Copper Free Aluminum
Mounting_Type
Surface
Series
EYD
Size
2 in NPT
Special Features

  • 2-5/16 in turning radius with cover removed
  • Drain sealing fittings are installed in vertical conduit runs and at low points in conduit systems to prevent accumulation of condensate above seal
  • Drain to provide continuous, automatic drainage of condensate
  • Integral bushings to protect conductor insulation from damage
  • Large openings with threaded closures to provide easy access to conduit hubs for making dams
  • Limit explosions to the sealed OFF enclosure
  • Prevent pre-compression or pressure piling
  • Restrict the passage of gases, vapors or flames from one portion of the electrical installation to another at atmospheric pressure and normal ambient temperatures
  • Stainless steel drain, steel removable nipples, Ferroalloy iron alloy and/or steel small closure plug, copper free aluminum or ductile iron closure for drain
  • Taper tapped hubs to ensure ground continuity
Standard
UL 886, CSA C22.2
Sub_Brand
Eaton Crouse-Hinds
Type
Dust-Ignitionproof Explosionproof Male/Female Hub
