Bussmann Bussmann A202202
Bussmann A202202
Kirby Risk #: 2584862
UPC: 05171233024, 051712330244, 00051712330244
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Bussmann
Description
Industry Description
30AMP 300V 2PL SGL ROW TERM BLCK
Modified Industry Description
MAGNUM 2000 SERIES
AD Description

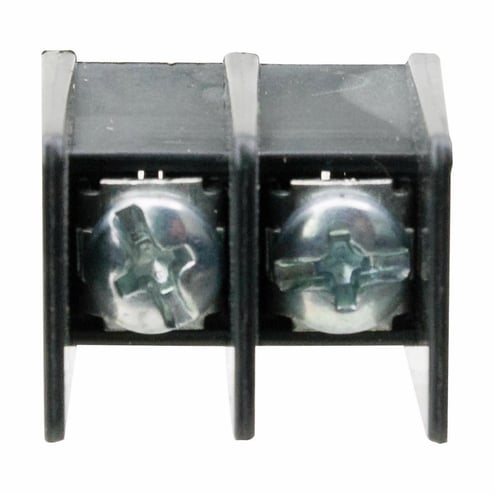

Bussmann A202202 Standard Barrier Terminal Block Strips & Barrier Block, 300 VAC, Black, 30 A, 22 to 12 AWG Size
Specifications
| Amperage Rating |
30
|
|---|---|
| Color |
Black
|
| Connection |
#6-32 TPI Screw, Hand Wired
|
| Conductor Size |
22 To 12 AWG (Copper)
|
| Country of Origin |
MX
|
| Dimensions |
0.81 in L x 0.65 in W
|
| Length1 |
0.2500
|
| Material |
Molded Thermoplastic
|
| Mounting_Type |
Surface
|
| Size |
0.81 In Length X 0.65 In Width
|
| Special Features |
Operating Temperature -40 To 105 Deg C, Torque Rating 9 Lb-In, Break Down Voltage 3400 V, Flat Base/Barrier End
|
| Standard |
UL, CSA, CE, IEC
|
| Temperature_Rating |
-40 to 105
|
| Type |
Standard Barrier
|
| Voltage Rating |
300
|
