3M 3M 972


Description

Industry Description

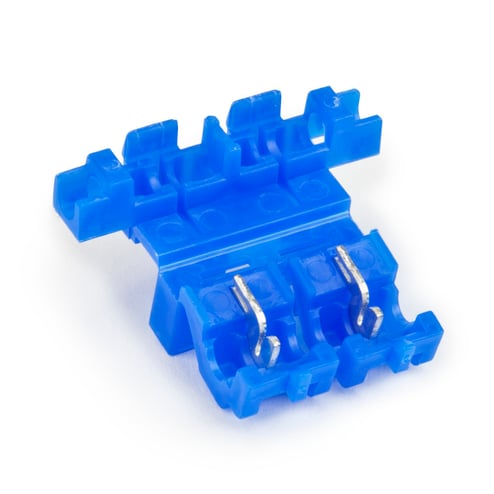

3M™ Scotchlok™ Fuse Holder Female Disconnect 972-A is specifically designed to install a blade type automotive fuse between the power source and device.

Modified Industry Description

FUSE HOLDER (1000/BULK)

AD Description

3M™ Scotchlok™ 051128-57557 Insulation Displacement Fuse Holder, 18 to 14 AWG, Insulated Insulation, Polypropylene

Vendor Description

3M™ Scotchlok™ fuse holder female disconnect 972-A is specifically designed to install a blade type automotive fuse between the power source and device. 3M™ Scotchlok™ fuse holder female disconnect 972-A has insulation that is manufactured from blue polypropylene. The holder operates efficiently up to 221 deg F. Protect your equipment when you include a 3M™ Scotchlok™ 972-A fuse holder female disconnect in your installation. It inserts a blade type automotive fuse to safely displace the insulation on wires so you most likely won't need to strip them when you're working at locations between the power source and the functional unit. The disconnect is RoHS 2011/65/EU Compliant, letting you integrate it into a range of jobs with confidence.

Specifications

Connection
Insulation Displacement
Conductor Size
18-14 AWG
Country of Origin
TW
Length1
11.4000
Material
Polypropylene
Size
18-14
Special Features

  • Brass element construction for good conductivity and tin plating for corrosion-resistance
  • Color coded for quick and easy identification of the wire size
  • Grease protects against moisture
  • Suitable for use in light fixtures, appliances and other electrical OEM applications
Sub_Brand
3M
Temperature_Rating
194
Type
Insulation Displacement
