Hubbell Hubbell WS1000W
Hubbell WS1000W
Kirby Risk #: 2571917
UPC: 78358525622, 783585256221, 00783585256221, 30783585256222
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Lighting Controls, Vacancy/OccupancySensors, Wall Switch, Passive Infrared Technology, Single Circuit, 120VAC, 500 Watt, White
Modified Industry Description
WHITE PASSIVE INFRARED OCCUPANCY SENSOR, 500W, 120V
AD Description

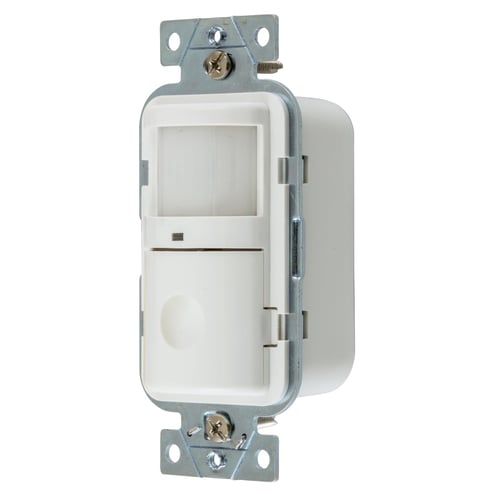

Wiring Device-Kellems H-MOSS® WS1000W WS Series Occupancy Sensor, 120 VAC, Passive Infrared Sensor, 1200 sq-ft Coverage, Threaded Mount
Vendor Description
Hubbell® WS/ATP series wall switches combine PIR sensing technology, photocell control and Hubbell® patented three wire method to provide the perfect light switch replacement solution. These sensors do not require a neutral connection and they have no minimum load requirements. The WS series has manual timer adjustment while the ATP series incorporates Hubbell® patented adaptive technology to automatically set timing and eliminate manual adjustments. The sensors come supplied with color matched faceplates. Manual on versions are available for enhanced savings. Four wire models support installations that require a neutral connection.
Specifications
| Application |
Compatible with most LED and CFL
|
|---|---|
| Brand Name |
Hubbell
|
| Color |
White
|
| Control_Output |
Automatic/Manual On
|
| Country of Origin |
TW
|
| Coverage1 |
1200
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Functions |
Terminal Screws
|
| Humidity |
20% to 90% non-condensing relative humidity
|
| Load |
Lighting Circuit
|
| Material |
ABS
|
| Mounting |
Mounting Screws
|
| Mounting_Type |
Threaded
|
| Operating_Temperature |
32°F to 122°F (0°C to 50°C) with rate of change not exceeding 20°F(11°C) per hour
|
| Sensing_Distance |
1200
|
| Sensitivity |
Adjustable
|
| Sensor |
Passive Infrared
|
| Size |
4.15 X 1.82 X 1.62
|
| Special Features |
|
| Standard |
cULus Listed To UL773A
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Supply_Voltage |
120 AC
|
| Temperature_Rating |
0 to 50
|
| Type |
Wall Sensor Switch
|
| Voltage Rating |
120
|
| Wattage |
500
|
