Burndy Burndy YA34L2TC38FX


Description

Industry Description

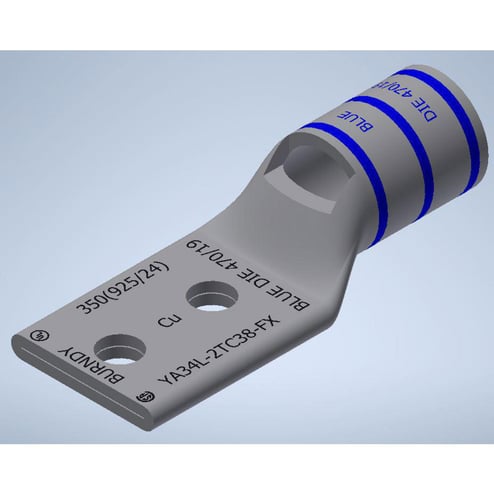

Copper Compression Lug, 2 Hole w/ Inspection Window, 373.7 Flex, 3/8" Stud, 1" Stud Hole Spacing, Short Barrel, Tin Plated.

AD Description

BURNDY® HYLUG YA34L2TC38FX YA-L-2TC-FX 2-Hole Compression Lug With Inspection Window, 373.7 kcmil, Die Code: 19, 3/8 in Stud, Copper

Vendor Description

BURNDY® compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost.

Specifications

Application
For Flex Conductor
Country of Origin
US
Length1
3.8800
Material
Copper
Special Features

  • Conductor size of 350 kcmil Nominal, 925/24, 240 SQ-MM for class 5 conductor
  • Electro tin plated
  • Flex conductor
  • For mechanical: MD6, OUR840, MD7-34R tool, (2) W32VT die, hydraulic: BCT500HS, Y500CTHS tool, (2) W32VT, W32RT die, Y35, Y39, Y750, PAT750 tool, (2) U32RT die, Y46 tool, (2) U32RT die with PUADP-1 adapter, dieless tools (number of crimps): (1) Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V installation tool
Standard
UL 486A-486B
Sub_Brand
HYLUG
Type
Standard Barrel, Tin Plated
Voltage Rating
35,000
