Milbank Milbank U4548-RXL
Milbank U4548-RXL
Kirby Risk #: 2543353
UPC: 78457223061, 784572230613, 00784572230613
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Milbank
Description
Industry Description
400 AMP 1PH 600 VOLT 16IN-27IN-5IN PNTD STL LIFT OFF FRONT HSP 5 LUGS PER LND 10K SCCR
AD Description

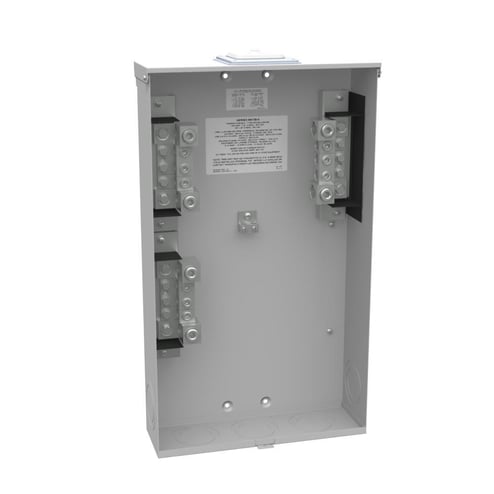

Milbank® U4548-RXL Closing Plate Terminal Box, 15-1/2 in W x 5 in D, NEMA 3R NEMA Rating, Steel
Specifications
| Amperage Rating |
Up to 400 Ampere
|
|---|---|
| Application |
Termination Cabinet
|
| Color |
ANSI 61 Gray
|
| Connection |
4 AWG to 600 kcmil and 6 AWG to 350 kcmil and 4 AWG to 600 kcmil and Line and Load Side Lugs
|
| Construction |
G90 Galvanized Steel
|
| Country of Origin |
USA
|
| Finish |
Powder Coat Finish
|
| Length1 |
5.0000
|
| Number Of Conductors |
5
|
| Size |
5L X 15.5W X 27H
|
| Special Features |
|
| Standard |
UL Listed;Type 3R
|
| Temperature_Rating |
No Temperature Rating
|
| Type |
Line to Load Distribution
|
| Voltage Rating |
Up to 600 Volts Alternating Current
|
