Hoffman Hoffman TX332848100
Hoffman TX332848100
Kirby Risk #: 2533420
UPC: 78351018855, 783510188559, 00783510188559
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hoffman
Description
Industry Description
ClimaGuard Air-to-Air Heat Exchanger Outdoor, X33, 33.00x15.70x8.10, Steel
Modified Industry Description
TX33 48DC HEX
AD Description

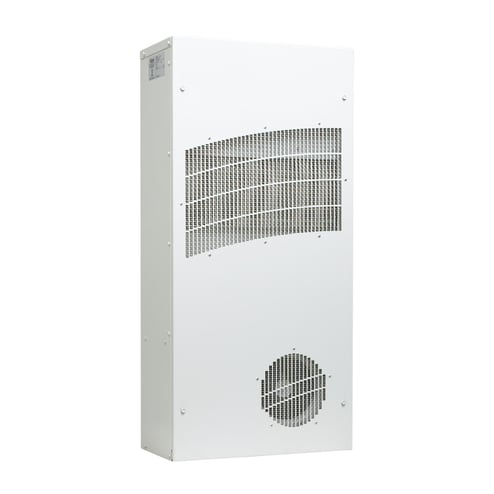

Hoffman ClimaGuard™ TX332848100 MCLHE TX33 Heat Exchanger, 48 VDC, 1.8 A, 87 W Power Rating, NEMA 3R/4/12 Enclosure, 228/166 cfm at 60 Hz Internal/External Loop Air Flow
Vendor Description
nVent Hoffman’s ClimaGuard Outdoor Heat Exchangers offer reliable closed-loop cooling while sealing out harsh environments including temperature extremes, dirt, dust, corrosive elements and wind-driven rain. This robust heat exchanger features a double-crimped and dip-sealed core, allowing efficient thermal transfer while ensuring maximum protection against leaks. With ClimaGuard Outdoor Heat Exchangers providing a tight seal against air and water infiltration, units can be simply surface- or recess-mounted to an enclosure with no loss of enclosure integrity.
Specifications
| Amperage Rating |
1.8
|
|---|---|
| Application |
Controls and Drives; Power Distribution
|
| Color |
Light Gray
|
| Country of Origin |
US
|
| Dimensions |
33 in H x 15.7 in W x 8.1 in D
|
| Finish |
Powder Coated
|
| Frequency_Rating |
50/60
|
| Length1 |
33.5000
|
| Material |
Mild Steel/Sheet Metal
|
| Mounting |
Surface Mounted
|
| NEMA_Rating |
4 Watertight
|
| Power_Rating |
87
|
| Series |
MCLHE TX33
|
| Special Features |
|
| Standard |
Maintains UL/cUL Type 4, 12, 3R rating when properly installed on the appropriate UL/cUL Type 4, 12, 3R enclosure., UL/cUL Listed, UL File No. SA7402
|
| Sub_Brand |
Climaguard
|
| Type |
Heat Exchangers
|
| Voltage Rating |
48
|
