Burndy Burndy YH2929WCC

Name: Burndy YH2929WCC
Brand: Burndy
SKU: 2526819
Price: 144.54 USD
Availability: InStock

Burndy YH2929WCC

Kirby Risk #: 2526819

UPC: 78181043642, 781810436424, 00781810436424

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Burndy

Description

Industry Description

Cu-code-H-Tap Crimpit, 250-2(4/0-2)(Main) ,250-2(4/0-2)(Tap 1), Flame retardent.

AD Description

BURNDY® CRIMPIT™ YH2929WCC Type YH Compression H-Tap Connector, Figure H, 2 AWG to 250 kcmil Main/Run, 2 to 250 kcmil Tap, Copper

Application	For Used To Accommodates A Wide Range Of Run/Tap Copper Cable Combinations Including Both Flexible And Code Combinations
Country of Origin	US
Finish	Tin Plated
Length1	0.9000
Material	Copper

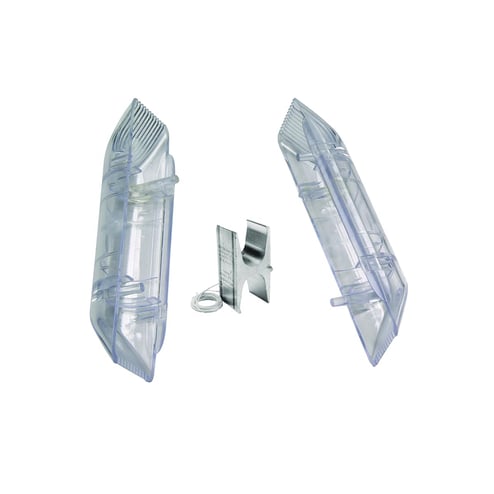

Special Features	4/0, 2/0, 3/0, 1, 1/0, 2 AWG, 250 kcmil conductor run size 4/0, 2/0, 3/0, 1, 1/0, 2 AWG, 250 kcmil tap size All (B/B, B/I, I/B, I/I) combinations acceptable each connector has many copper cable combination applications allowing maximum flexibility for the design and installation of a system Balance may be used or left empty Color code on the connector matches installation die - provides matched system for fast and easy installation Die index embossed on connector after completion of crimp For use with Y750 tool, U654 die, Y46 tool, U654 die with puadp-1 adapter and P654 die Provides maximum design and installation flexibility Recommended flame retardant type CFFR insulating covers meet oxygen index 28 and UL94 V-0 requirements Simplifies installation, reducing installed cost Tap grooves function independently from each other Third hand constrains conductors while installer completes crimp, included with each connector Use of one tap is required
Standard	UL 486A-486B
Sub_Brand	CRIMPIT
Temperature_Rating	194
Type	Compression Taps
Voltage Rating	35,000
