Midwest Midwest P035F


Description

Industry Description

Non-Metallic Fusible Disconnects are available in 30 and 60 Ampere models. Pullers are removable or reinstallable in the OFF position for user safety during equipment maintenance. The P065F UL listing includes the ability to field replace the 60 Ampere puller with a 30 Ampere puller (FR352) for installation flexibility. Listed for use as service entrance.

Modified Industry Description

AC 30A FUSED 6X8

AD Description

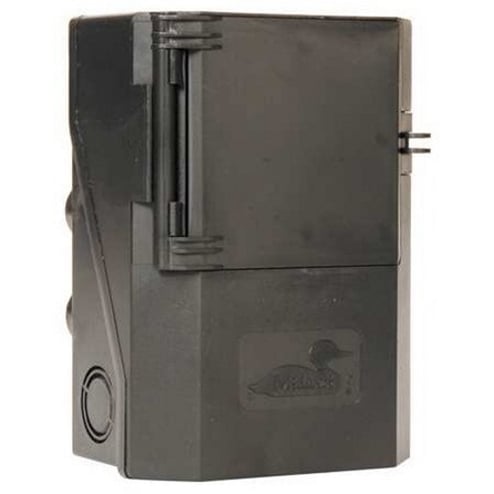

Midwest® GE P035F Fused Pull-Out AC Disconnect Switch, 120/240 VAC, 30 A, 3 hp, 2 Poles

Specifications

Amperage Rating
30
Country of Origin
UKN
Dimensions
8 in H x 5-3/4 in W x 3-1/8 in D
Enclosure
NEMA 3R Noryl Thermoplastic
Horsepower
3
Interrupt_Rating
10000
Length1
8.0000
Material
Noryl/Thermoplastic
Mounting
Surface
Mounting_Type
Surface
Number_Of_Poles
2
Phase
1
Special Features

  • 3-piece construction that opens up mounting and wiring areas, reduces installation time
  • Door has padlock provisions to prevent unauthorized access
  • FR352 puller, FR39 complete block and puller replacement parts
  • Listed for use as service entrance
  • Noryl® thermoplastic enclosure is corrosion resistant and extremely durable, giving long maintenance free service
  • Numerous knockouts reduce installation time straight-in, straight-out wiring saves time and money
  • Pullers are removable or re-installable in the OFF position for user safety during equipment maintenance
  • The P065F UL listing includes the ability to field replace the 60 A puller with a 30 A puller (FR352) for installation flexibility
Standard
UL/CUL listed
Sub_Brand
Midwest
Type
Fused Pull-Out
Voltage Rating
120/240
