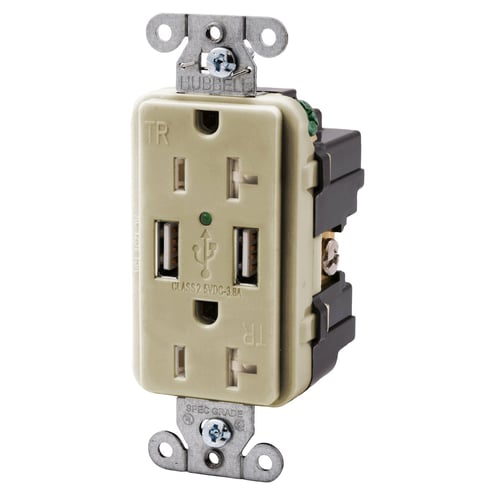

Hubbell Hubbell USB20X2I
Hubbell USB20X2I
Kirby Risk #: 2518625
UPC: 88377830483, 883778304835, 00883778304835, 30883778304836
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Modified Industry Description
20A 120V - IVORY 2 PORT USB CHARGER, DUPLEX RECEPTACLES, 2 POLE, 3 WIRE
AD Description
Wiring Device-Kellems USB20X2I 1-Phase Decorator Duplex Standard Self-Grounding Tamper-Resistant USB Charger Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory
Vendor Description
Hubbell® USB Charger receptacle provides both USB and AC electrical power in a standard single gang electrical opening. Designed to provide more charging options for personal electronics.
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
Commercial Specification Grade
|
| Brand Name |
Hubbell
|
| Color |
Ivory
|
| Connection |
Back and Side Wired
|
| Conductor Size |
#14 AWG to #12 AWG
|
| Country of Origin |
CN
|
| Dielectric_Strength |
Withstands 2,000V minimum
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Grade |
Commercial Specification Grade
|
| Material |
Thermoplastic/Composite
|
| Mounting |
Screw Mount
|
| NEMA_Configuration |
5-20R
|
| NEMA_Rating |
5-20R
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
3
|
| Phase |
Single
|
| Poles |
2
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL 498 for Receptacle, Complies with battery charging specification USB BC1.2, Compatible with USB 1.1/2.0/3.0 devices, Complies with Part 15 of the FCC rules
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Duplex W/USB Ports
|
| Voltage Rating |
125
|
| Wattage |
2,500
|
