Burndy Burndy YAV1CL


Description

Industry Description

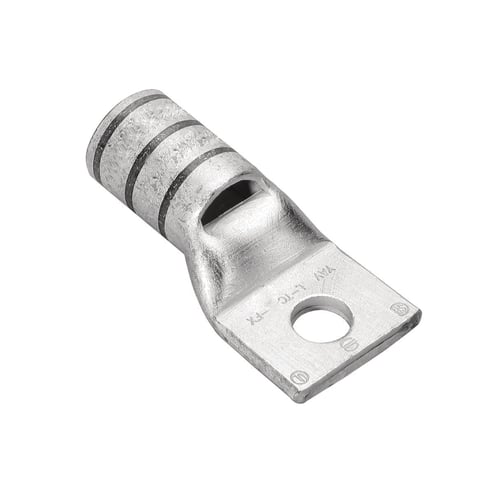

Copper Compression Lug, Heavy Duty, Ring Tongue, 1 Hole w/ Inspection Hole, AN-1 Flex, 3/8" Stud, Short Barrel, Tin Plated.

AD Description

BURNDY® HYLUG YAV1CL YAV-L 1-Hole Heavy Duty Non-Insulated Compression Lug With Inspection Hole, 1 AWG Stranded Copper Conductor, Die Code: 42, 3/8 in Stud, Copper

Vendor Description

BURNDY® compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.

Specifications

Application
For Use On Type AN Aircraft Cable, Extra Flexible Conductors And Commercial (Code) Conductors, Industrials, Hospitals, Electric Utilities, Marine, Computers, And Other Equipment Subject To Vibration Or Requiring Dependable Electrical Performance
Conductor Type
Stranded Copper
Conductor Size
1
Country of Origin
US
Insulation
None
Length1
1.8400
Material
Copper
Series
YAV-L
Special Features

  • 1.45 in hole center to barrel end, 0.38 in hole center to barrel
  • AN 1 AWG aircraft cable size, 1 AWG copper stranded conductor
  • Bulk packaging
  • Copper/flex conductor
  • For HYtool MY28, MY29-11 non-ratchet, HYPRESS Y29NC, Y29B, DV1L die nest, Y29PL die indentor, (1) crimp, Y35, Y39, UV1L die nest, Y35P3 die indentor, (1) crimp, Y750, UV1L die nest, Y34PLA die indentor, (1) crimp installation tools
  • Pure electrolytic tin plated
  • The benefits of YAV-L connectors are the same as YAV connectors for stranded conductors
  • The seamless tubing produces a double thick tongue and seamless barrel design provides a strong connector for demanding applications requiring high reliability
  • Uninsulated compression terminal manufactured from electrolytic copper and is for use on type AN aircraft cable, extra flexible conductors and commercial (code) conductors
  • Used for other equipment that is subject to vibration or requiring dependable electrical performance
Standard
UL467
Sub_Brand
HYLUG
Type
1-Hole Heavy Duty Non-Insulated
