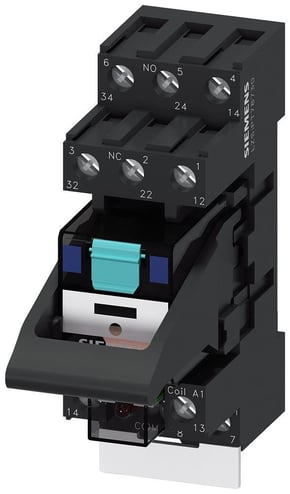

Siemens Siemens LZS:PT3A5L24


Description

Industry Description

PLUG-IN RELAY COMPLETE UNIT 24 V DC, 3 CO CONTACT LED MODULE STANDARD PLUG-IN SOCKET 3.5 MM PINNING Screw Terminal Red

Modified Industry Description

PLUG-IN COUPL., COMPLETE UNIT

AD Description

SIRIUS LZS:PT3A5L24 Standard Plug-In Relay Complete Unit, 10 A, 3CO Contact, 24 VDC V Coil

Vendor Description

The coupling relays with semi-conductor output have low power consumption and are therefore particularly well suited to solid state systems. In the versions equipped with LEDs, these indicate the switching state. The LZS:PT/MT coupling relays have a test button. This can be used to force the relays into the switching state and to lock it without electrical control. This is indicated by a raised petrol colored lever.

Specifications

Country of Origin
DE
Dimensions
75 mm H x 28 mm W x 74 mm D
Length1
5.7100
Special Features

  • 4 A at 250 VAC AC-15, 4 A at 24 VDC DC-13 contact rating
  • Control with solid-state output
  • For protective separation, transfer of the voltage of one circuit to another circuit is prevented to a suitable degree of safety requirements and tests are described in IEC 60947-1
  • Module red standard
  • Monostable switching behavior
  • The relays are plugged into the base and this is snapped onto a TH 35 standard mounting rail according to IEC 60715
  • The terminals for the contacts and the terminals for the coil are arranged on separate levels
Type
Complete Unit
