Burndy Burndy KVSU40


Description

Industry Description

Tin-plated copper alloy connector with tin plated silicon bronze hardware. Spacer bar separates dissimilar conductors and provides long contact length,Tightening torque: 500 in -lb,wrench size:3/4 cross flats.

Modified Industry Description

CBL TAP CONN 4/0 - 800 KCMIL

AD Description

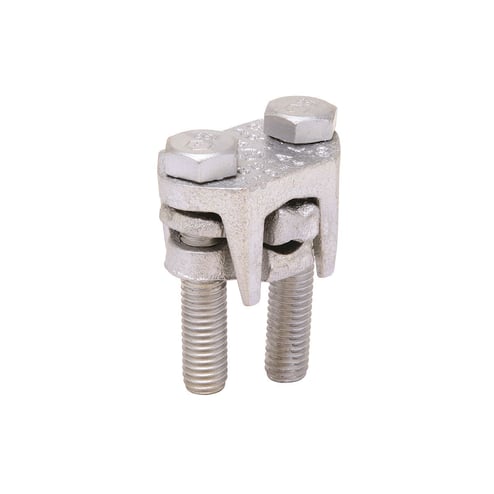

BURNDY® UNIVERSAL OKLIP® KVSU40 2-Piece Compact High Strength Mechanical Grounding Connector, 4/0 AWG to 800 kcmil Conductor, Copper Alloy

Vendor Description

All BURNDY® mechanical grounding connectors have been designed for easy installation and for outstanding durability. Only the finest high copper alloys are used in their manufacture, ensuring top performance under the most extreme environmental conditions. UL 467 listed for direct burial applications in earth or concrete.

Specifications

Application
For All Combinations of Copper, Aluminum, ACSR, AAAC And 5005, Heavy Duty Connections
Conductor Type
Aluminum/Copper/Solid
Conductor Size
4/0 AWG to 800 kcmil
Country of Origin
MX
Dimensions
1-5/8 in L x 2-1/2 in W x 3-1/2 in H
Finish
Tin Plated
Length1
1.6200
Material
Copper Alloy
Series
KVSU
Special Features

  • 1/2 in bolt size
  • 4/0 AWG to 800 kcmil (main/primary), 3-gang/0 AWG to 800 kcmil (tap/secondary) conductor size
  • 500 in-lb installation/tightening torque
  • For copper and copper weld wires
  • High strength copper alloy 2-piece connector with spacer and tin plated silicon bronze Durium hardware
  • Longer peened bolt permits swivel action for easier installation
  • Neoprene ring prevents loss of shorter bolt during installation
  • Run: ACSR, 5005, AAAC, commercial stranded aluminum, commercial stranded copper, solid copper, solid copper weld , steel nominal diameter, tap: ACSR 5005, AAAC commercial stranded aluminum, commercial stranded copper, solid copper, solid copper weld conductor type
  • Spacer separates dissimilar conductors and provides long contact length
  • Tin plated copper alloy two-piece connector with spacer and tin plated silicon bronze Durium hardware
  • Use of PENETROX joint compound recommended with aluminum and ACSR
Standard
CSA Certified, RoHS Compatible
Sub_Brand
Burndy
Type
2-Piece Compact High Strength
