Appleton Appleton EYM300AL


Description

Industry Description

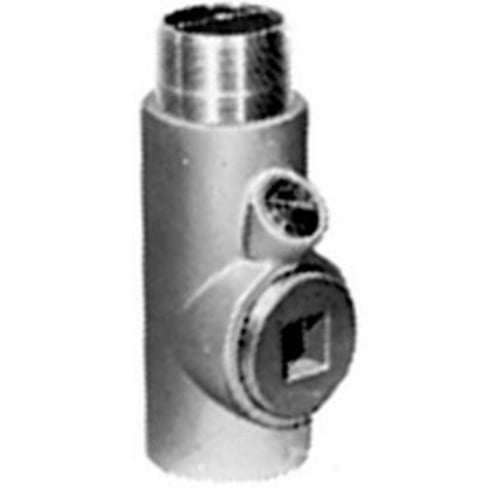

UNILETS EY Series 25 PCT Fill Vertical And Horizontal Conduit Sealing Fitting With Removable Nipple, Size: 3 IN, Material: Almag 35 Aluminum, Finish: Epoxy Powder Coat, Connection: Female Threaded X Male Threaded, Turning Radius: 3.13 I

Modified Industry Description

3 ALMAG 35 SEALING FITTING

Specifications

Application
For Use With Threaded Rigid Metal Conduit And IMC
Connection
Female Threaded X Male Threaded
Country of Origin
MX
Dimensions
8.13 in L x 4.13 in W
Finish
Epoxy Powder Coated
Length1
11.6000
Material
Almag 35 Aluminum
Series
EYM
Size
3
Special Features

  • Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity
  • Close radius type for sealing vertical or horizontal conduit runs
  • Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub
  • Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location
  • Required in Class I, Division 1 and 2 locations where 2 in or larger conduit enters enclosure, fitting housing terminals, splices or taps
  • Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 in or less conduit
  • Required in Class I, Division 1 and 2 locations within 18 in of enclosures containing apparatus that may cause arcs, sparks or high temperatures
  • Required where cables which exceed rate of gas or vapor transmission permitted for seals are used in Class I, Division 2 locations
  • Restrict any explosion to the sealed off enclosure, prevent pressure piling within conduit system
  • Seal must be located within 18 in of either enclosure
  • Smooth, rounded integral bushing in each hub to protect conductor insulation
Standard
UL 886 (1203), UL File Number E10444, CSA C22.2 No. 30, CSA 065181
Sub_Brand
Appleton
Type
Dust-Ignitionproof Explosionproof Raintight
