O-Z/Gedney O-Z/Gedney GUEB7100AN4


Description

Industry Description

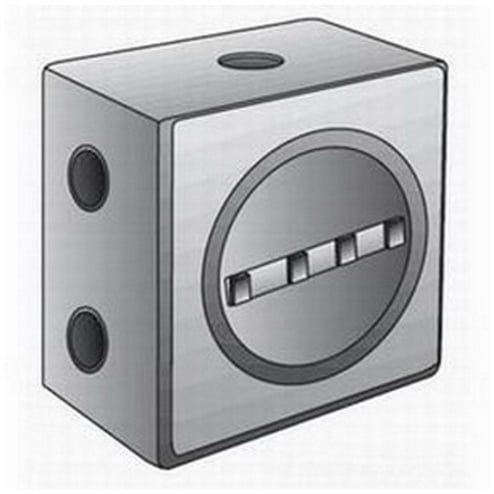

OZ-Gedney Type GUEB Conduit Outlet Box, Number Of Outlet: 7, Copper-Free Aluminum, Size: 1 IN, Cable Entry: (7) 1 IN Hubs, 29 CU-IN Capacity, No, 3.38 IN Cover Opening, Finish: Aluminum Enamel, 4-5/8 IN Width, 3 IN Depth, 4-5/8 IN Height, NEMA Rating: NEMA 4, 7BCD, 9EFG, Third Party Certification: UL File Number E-30513, Class I, Division 1, 2, Groups B, C, D, Class I, Zone 1, 2, Groups IIA, IIB, Class II, Division 1, 2, Groups E, F, G, Class III, CSA 009795, Applicable Third Party Standards: UL 886, CSA C22.2 Number 30, NEC Articles 500-503 And 505, Federal Specification A-A-50563, For Rigid Conduit And IMC

Modified Industry Description

HAZ LOC COND OUTL BX NEMA4

Specifications

Application
For Rigid Conduit And IMC
Country of Origin
MX
Dimensions
4-5/8 in H x 4-5/8 in W x 3 in D
Finish
Aluminum Enamel
Length1
5.5000
Material
Aluminum
Series
GUEB
Size
1
Special Features

  • Cast in brackets on cover for use with breaker bar tools for tightening/loosening
  • O-Ring gasket provided to assure NEMA 4 rating
  • Smooth hub bushings protect insulation when pulling conductors
  • Supplied with close-up plugs
  • Tapered threaded hubs (NPT)
Standard
Third Party Certification: UL File Number E-30513, Class I, Division 1, 2, Groups B, C, D, Class I, Zone 1, 2, Groups IIA, IIB, Class II, Division 1, 2, Groups E, F, G, Class III, CSA 009795, Applicable Third Party Standards: UL 886, CSA C22.2 Number 30, NEC Articles 500-503 And 505, Federal Specification A-A-50563
Sub_Brand
O-Z/Gedney
Type
GUEB Conduit Outlet Box
