Philips Advance Philips Advance H1B13TPWI


Description

Industry Description

Ballast, Fluorescent Compact, Electronic, Input Voltage: 120 VAC, Input Amps: 0.21 Amp, Minimum Starting Temperature: 50 Degree F, Number of Lamps: 1, Lamp Wattage: 18, Total Harmonic Distortion: <15 Percent

Modified Industry Description

MAG BALLAST (1) 13W COMPACT(2-PIN)

AD Description

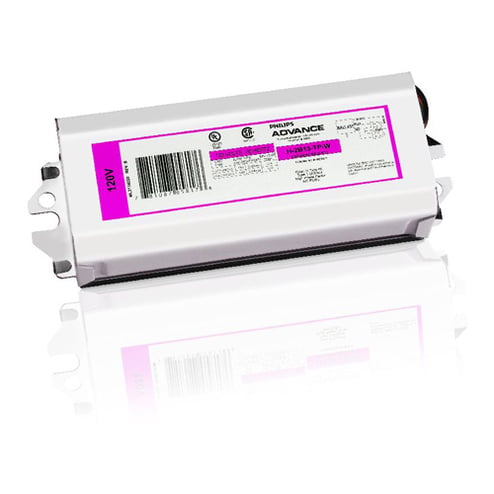

Advance H1B13TPWI Standard Magnetic Compact Fluorescent Ballast, CFL Lamp, 13 W Lamp, 120 VAC, Pre-Heat, 0.91 Ballast Factor

Specifications

Amperage Rating
0.14
Ballast_Factor
0.91
Brand Name
Philips Advance
Country of Origin
USA
Frequency_Rating
60
Lamp_Type
CFQ13W/GX23
Material
Metal
Minimum_Starting_Temperature
50
Number_Of_Lamps
1
Power_Factor
0.91
Special Features

  • 112 to 127 VAC applied voltage limits
  • 20 to 24 dB average ambient noise level
  • 60 Hz lamp operation eliminates possible EMI/RFI interference
  • Available for many fluorescent lamp types sold today, including preheat, rapid start, 2-pin CFL, slimline, high output, very high output and circline
  • High power factor
  • Only choice for many low volume lamp types on the market
  • Series lamp connection
  • Yellow color label identification
Start_Type
Preheat
Sub_Brand
Philips Advance
Thermal_Protection
Class P
Total_Harmonic_Distortion
25%
Type
Magnetic Fluorescent
Vendor
Signify
Voltage Rating
120
Wattage
13
