Broan-NuTone Broan-NuTone QTNLEDB


Description

Industry Description

110 CFM, 0.7 Sones, Energy Star Fan/Light/Night-Light with 2-18W GU24 based bulbs (bulbs included). 6" or 4" duct. Square design.

Modified Industry Description

Ultra Silent Series - LunAura

AD Description

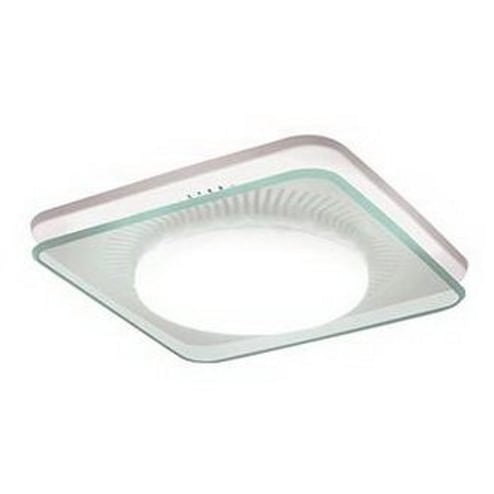

NuTone® QTNLEDB Fan/Light Combo, (2) Fluorescent Lamp, 120 VAC, Polymer Housing

Specifications

Country of Origin
USA
Dimensions
10-1/2 in L x 11-3/8 in W x 7-5/8 in H
Lamp_Type
Fluorescent
Mounting_Type
Ceiling
Special Features

  • 0.7 Sones, 110 cfm at 0.1 in SP/90 cfm at 1/4 in SP airflow rate
  • 110 cfm quickly reduces humidity to prevent or eliminate fogged mirrors and manage moisture in bathrooms upto 100 sq-ft, so your vision will always be clear and your surroundings will always be comfortable
  • 6 in round to 4 in round duct reducer included, allows connection of 4 in round ductwork
  • Blue LED nightlight glows from a circular disc around the main lighting to provide a soft, soothing light during a relaxing bubble bath or convenient overnight lighting
  • Can be mounted in ceilings upto 12/12 pitch
  • Dynamically balanced centrifugal blower wheel for quiet, efficient performance
  • Green tinted light panel suspended below the fan turns blue when lit, with a stunning, glowing edge and provides a calming effect
  • Hanger bars to position housing anywhere between 16 to 24 in on center joists
  • Innovative grille design with white enamel finish durable steel reflector
  • Plug-in, permanently lubricated motor engineered for continuous operation and low rpm for quiet operation
  • Polymeric, 6 in round duct connector with tapered sleeve and no metallic clatter
  • Quiet fan grade
  • Rugged 26 ga galvanized steel construction housing
  • Square grille shape
  • Sturdy, easy, 4-point mounting directly to joist
  • Two sets of mounting holes for hanger bars allow flush installation with bottom or top of drywall
  • UL listed for use over bathtubs and showers when connected to a GFCI protected branch circuit (ceiling mount only) and for use in insulated ceilings (type IC)
  • Unique spacer (patented) for mounting to engineered "I" joists
  • Ventilation fan type
  • White grille color
Sub_Brand
Broan
Voltage Rating
120
