Thomas & Betts Thomas & Betts SH716AMV

Name: Thomas & Betts SH716AMV
Brand: Thomas & Betts
SKU: 2442890
Price: 226.90 USD
Availability: InStock

Thomas & Betts SH716AMV

Kirby Risk #: 2442890

UPC: 78620998700, 786209987006, 00786209987006

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Thomas & Betts

Description

Industry Description

Side entry single post hood, NPT entry-1 Inch x 3/4 Inch

Modified Industry Description

A16 SINGLE LOCK SYS 1XPG21-3/4

AD Description

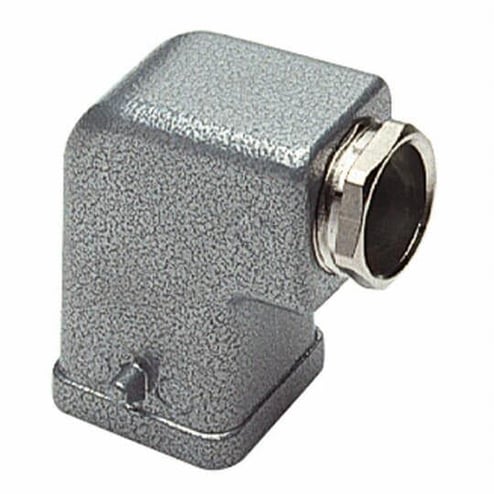

Pos-E-Kon® SH716AMV A Series Single Post Hood With Gasket, Side 1 x 3/4 in NPT Entry, Standard Mount, Die Cast Aluminum Alloy

Vendor Description

Pos-E-Kon® DIN standard rectangular pin and sleeve connectors are modular for easy assembly at the customer site.

Brand Name	Thomas & Betts
Country of Origin	DE
Finish	Epoxy Powder Coated
Material	Die Cast Aluminum Alloy
Special Features	16 contacts with ground A16 single lock system 1 x PG21-3/4 connection At A3, 4, 10 and 16 locking mechanism Hood is hard silver/gold plated and has epoxy powder coated finish EPDM seal gaskets that are chemical-resistant IP65 internal protection DIN VDE 0470 Side entry single post hood is made of die cast aluminum alloy that provides resistance to corrosion
Standard	UL E215386
Sub_Brand	Pos-E-Kon
Temperature_Rating	-40 to 257
Type	Hoods-Standard Mount
