STI STI EZDP233GK
STI EZDP233GK
Kirby Risk #: 2438969
UPC: 73057300235, 730573002353, 00730573002353
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: STI
Description
Industry Description

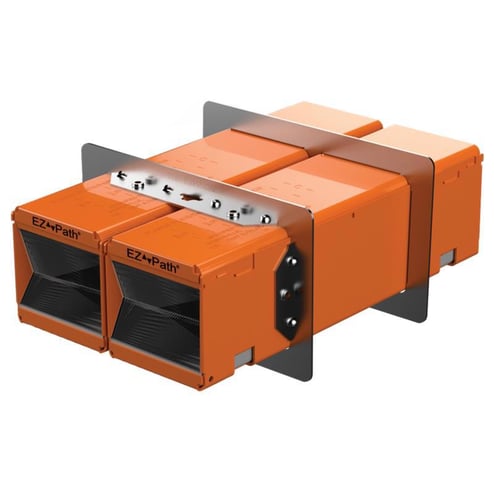

EZ-Path Series 33 Fire-Rated Pathway Two-Gang Kit, Full kit with two (2) devices, one pair (2) two-gang plates & labels
Modified Industry Description
33 SERIES - TWO (2) FIRE-RATED
Specifications
| Application |
Firestopping/Cables, wires through rated walls and floors.
|
|---|---|
| Color |
Orange
|
| Construction |
Maintenance-free pathway solution for moderate cable volumes through fire-rated walls and floors. The Series 33 incorporates built-in intumescent pads that automatically adjust to cable fills. When exposed to flame and high temperatures, the intumescent pads expand to form a dense insulative char that prevent the passage of smoke and flame.
|
| Country of Origin |
USA
|
| Length1 |
12.2500
|
| Material |
Galvanized Steel
|
| Mounting |
Wall Plate
|
| Special Features |
Self Sealing design providing exceptional F&L Ratings., Designed for New and Existing conditions., Full Suite of plate configurations for any field scenario., Available in an array of colors for easy cable pathway management., Allows for easy Moves, Adds, and Changes.
|
| Standard |
ASTM E814, UL 1479, CAN/ULC S115
|
| Sub_Brand |
EZDP
|
| Temperature_Rating |
-10 to 120
|
| Type |
Fire Rated Cable Pathways
|
