STI STI EZD22


Description

Industry Description

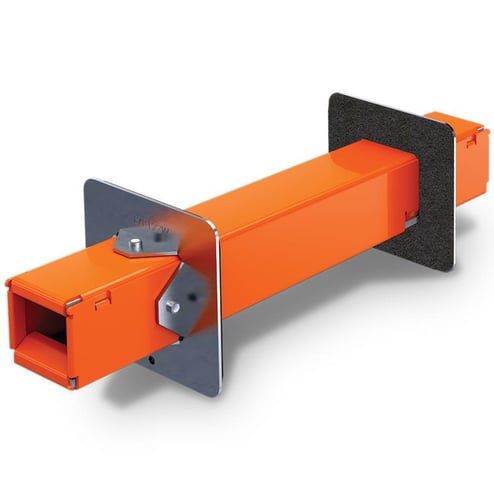

EZ-Path Series 22 Fire-Rated Pathway Kit, Full kit with device, wall plates & labels

AD Description

EZ-Path® EZD22 22 Series Fire Barrier Pathway Kit, Squared Shape, 10-1/2 in L x 1-1/2 in W x 1-1/2 in H, 1 to 2 hr Fire Rating, Steel, ASTM E814, FM Approved, UL 1479, CAN/ULC S115

Vendor Description

The EZ-Path® series 22 fire rated pathway is a pathway device designed to allow cables to penetrate fire rated walls without the need for fire stopping. This device features a built-in fire sealing system that automatically adjusts to the amount of cables installed. Once installed in a fire barrier, cables can be easily added or removed at any time without the need to remove or reinstall fire stopping materials.

Specifications

Application
Raceway device designed to allow cables to penetrate fire-rated walls without the need for firestopping.
Color
Orange
Construction
Maintenance-free pathway solution for smaller cable bundles through fire-rated wall assemblies. The device is offered as a complete kit without the need for additional accessory products for installation.
Country of Origin
USA
Length1
14.0000
Material
Galvanized Steel
Mounting
Wall Plate
Special Features

  • Allows for easy moves, adds and changes
  • Designed for new and existing construction
  • Self-sealing design providing exceptional fire and smoke leakage ratings
  • Suited for round and rectangular openings
Standard
ASTM E814, UL 1479, CAN/ULC S115
Sub_Brand
EZD
Temperature_Rating
-10 to 120
Type
Fire Rated Cable Pathways
