Burndy Burndy YH2929WC


Description

Industry Description

H-Tap CU Crimpit, Electro-Tin Plated, 250-2(Run), 250-2(Tap).

Modified Industry Description

H-TAP CONN CU 2 - 250 AWG

AD Description

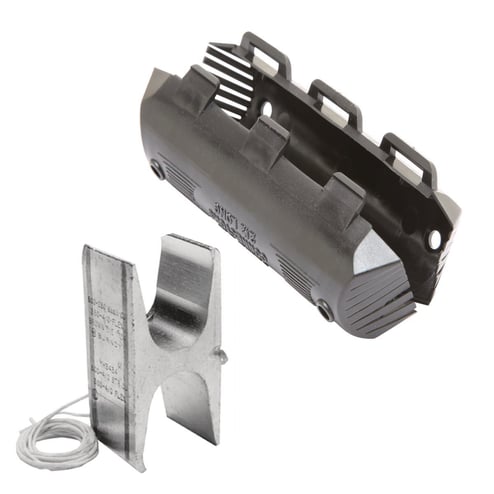

BURNDY® CRIMPIT™ YH2929WC Type YH Compression H-Tap Connector, Figure H, 1 Taps, 2 AWG to 250 kcmil Main/Run, 2 AWG to 250 kcmil Tap, Copper

Specifications

Application
For Used To Accommodates A Wide Range Of Run/Tap Copper Cable Combinations Including Both Flexible And Code Combinations
Conductor Size
Run: 4/0, 2/0, 3/0, 1, 1/0, 2 AWG, 250 KCMIL
Country of Origin
US
Dimensions
0.9 in L x 0.9 in W x 1.85 in H
Finish
Electro-Plated Tin
Length1
0.9000
Material
Copper
Size
1.85 IN Height X 0.9 IN Width X 0.9 IN Length
Special Features

  • 4/0, 2/0, 3/0, 1, 1/0, 2 AWG, 250 kcmil conductor run size
  • 4/0, 2/0, 3/0, 1, 1/0, 2 AWG, 250 kcmil tap size
  • All (B/B, B/I, I/B, I/I) combinations acceptable each connector has many copper cable combination applications allowing maximum flexibility for the design and installation of a system
  • Balance may be used or left empty
  • Color code on the connector matches installation die - provides matched system for fast and easy installation
  • Die index embossed on connector after completion of crimp
  • For use with Y750 tool, U654 die, Y46 tool, U654 die with puadp-1 adapter and P654 die
  • Provides maximum design and installation flexibility
  • Recommended flame retardant type CFFR insulating covers meet oxygen index 28 and UL94 V-0 requirements
  • Simplifies installation, reducing installed cost
  • Tap grooves function independently from each other
  • Third hand constrains conductors while installer completes crimp, included with each connector
  • Use of one tap is required
Standard
UL Listed, CSA Certified
Sub_Brand
Burndy
Temperature_Rating
194
Type
Type YH
Voltage Rating
600
