Leviton Leviton 6110G-RW6


Description

Industry Description

eXtreme 10G QuickPort Connector, CAT 6A, white

Modified Industry Description

JACK CAT6A 10G WHITE

AD Description

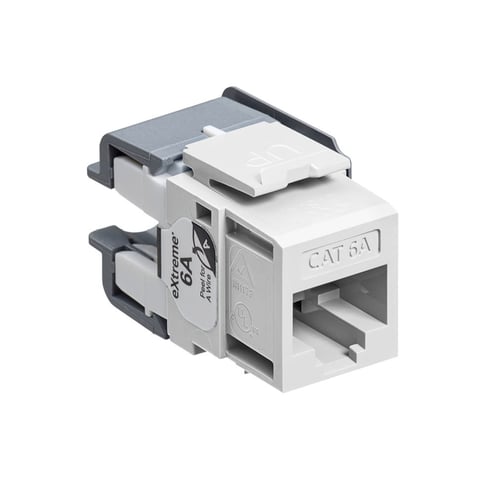

Leviton® eXtreme® QuickPort® 6110G-RW6 Channel Rated Crimp UTP Connector, CAT 6a Module, Flush Mount, 1 Port, Plastic, White

Vendor Description

The eXtreme® Cat 6a channel rated QuickPort® connector exceeds all channel performance requirements in ANSI/TIA-568-C.2 and ISO/IEC class EA from 1 MHz to 500 MHz to support the IEEE 802.an standard for 10 Gigabit Ethernet over UTP Cable. The connector is designed to be used with all QuickPort® compatible products and features patented injection-molded Cone of Silence™ covers to eliminate alien crosstalk (AXT). The connector includes patented retention force technology to promote consistent network performance over the life of the system. Unique pair separation towers facilitate quick, easy terminations. The connector is configured in a 180 deg configuration such that the punch down field is in the back, allowing for rear termination.

Specifications

Application
Commercial
Brand Name
Leviton
Color
White
Connection
Crimp
Country of Origin
US
Environmental_Conditions
Flammability (Rated V-0 Per UL94)
Material
Plastic
Mounting
Surface;Flush
Number_Of_Ports
1
Size
0.885 H X 0.68 W X 1.44 D
Special Features

  • Alien crosstalk attenuation cover (Cone of Silence™)
  • Copper alloy contacts
  • Fire retardant
  • Pair separation tower (PST) design facilitates separation of Cat 6a conductors
  • Patented retention force technology (RFT)
Standard
ANSI\TIA-568-C.2;ISO\IEC 11801 Class E;IEEE 802.3an 10GBASE-T;cULus Listed;ANSI\TIA-1096-A (Formerly FCC Part 68)
Sub_Brand
QuickPort;eXtreme
Type
CAT 6A Connector
Width_2
5.5000
