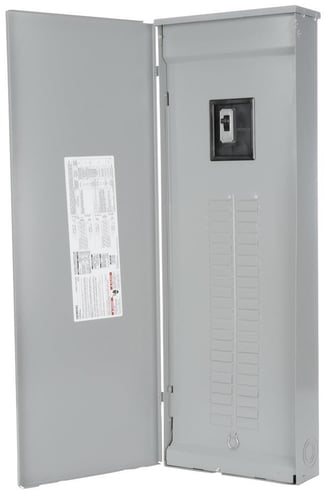

Siemens Siemens PW4260B3200CU


Description

Industry Description

SIEMENS LOW VOLTAGE PL SERIES LOAD CENTER. FACTORY INSTALLED MAIN BREAKER WITH 42 1-INCH SPACES ALLOWING MAX 60 CIRCUITS. 3-PHASE 4-WIRE SYSTEM RATED 120/240V OR 120/208V (200A) 22KA INTERRUPT. SPECIAL FEATURES COPPER BUS, INTERCHANGEABLE MAIN, GRAY TRIM, NEMA TYPE3R ENCLOSURE FOR OUTDOOR USE.

Modified Industry Description

200A NEMA 3R 42 SPACE MAIN BREAKER LOAD CENTER, COPPER OUTDOOR, 60 CIRCUITS

AD Description

Siemens PW4260B3200CU PL Series Three Phase Main Breaker Load Center, 120/240 VAC, 200 A, 22 kA Interrupt

Vendor Description

The PL series load center product line provides a wide array of variation to meet any application need.

Specifications

Amperage Rating
200
Brand Name
Siemens
Bus_Rating
200
Cable_Size
N/A
Circuit_Breaker_Type
MB
Country of Origin
MX
Cover_Type
PL Series
Enclosure
NEMA 3R
Frequency_Rating
N/A
Interrupt_Rating
22
Load_Regulation
200A
Mounting
Surface
Number_Of_Feeders
60
Number_Of_Spaces
42
Phase
3
Size
3371.25
Special Features

  • 200 A load regulation
  • 3371.25 size
  • A rigid, sturdy base pan provides the ruggedness required for the most harsh applications
  • All devices are provided with 2 factory installed ground bars
  • All devices convertible from main lug to main breaker and vice versa
  • Combination head screw on the neutrals, ground, trim, upper pan, and bond screw provide installation flexibility
  • Convertible
  • Copper busbar
  • Dual neutrals on all configurations
  • Invertible for bottom feed application
  • Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
  • Outdoor enclosure
  • Slide hinge door cover
  • The patented INSTA-WIRE neutral/ground system allows for faster installation because screws are backed out, ready for wire insertion
  • The prepositioned bond screw eliminates bond strap/screw assemblies, and reduces the risk of losing components in the field
  • The visible neutral and grounds system aids in the insertion of conductors
Standard
N/A
Sub_Brand
Siemens
Type
Breaker
Voltage Rating
120/240
Wattage
N/A
Wiring_Configuration
3/4-Wire
