Burndy Burndy 1PL43

Name: Burndy 1PL43
Brand: Burndy
SKU: 2415590
Price: 61.43 USD
Availability: InStock

Burndy 1PL43

Kirby Risk #: 2415590

UPC: 78181028697, 781810286975, 00781810286975

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Burndy

Description

Industry Description

UV Rated Black Unitap, 3, #14 - 4, 1.59 in L, 1.25 in W, Range-taking capability reduces the number of connectors carried in inventory.

AD Description

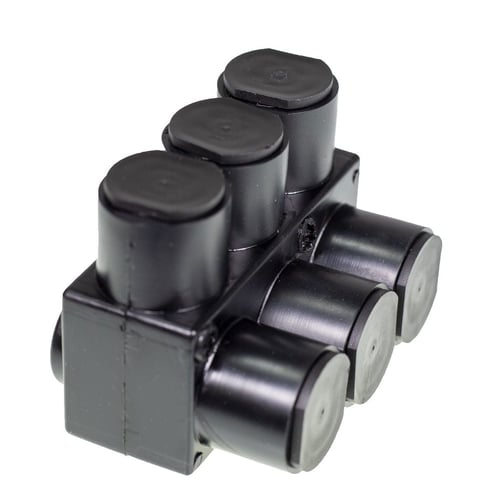

BURNDY® UNITAP™ 1PL43 3-Port 1-Sided Entry Type BIBS Multi-Port Connector, 14 to 4 AWG Run/Main, Aluminum/Copper/Stranded Conductor, Aluminum

Application	For Indoor Use Only, Copper Or Stranded Aluminum
Conductor Type	Aluminum/Copper/Stranded
Conductor Size	14-4 AWG
Country of Origin	US
Dimensions	1.59 in L x 1.25 in W x 1.25 in H
Finish	Black
Length1	1.5100
Material	Aluminum
Size	1.25 IN Height X 1.25 IN Width X 1.59 IN Length
Special Features	Oxide inhibitor pre-installed inhibits moisture and contaminants from entering the contact area Range taking capability reduces the number of connectors carried in inventory UNITAP™ rated for code conductor only UV rated plastisol covered AL6061-T6 aluminum body saves time by eliminating the need for taping
Standard	UL486B Listed At 90 DEG C, 600 V, AL9CU Rated, CSA Certified, RoHS Compatible
Sub_Brand	UNITAP
Temperature_Rating	90
Type	3-Port 1-Sided Entry Type BIBS
Voltage Rating	600
