Thomas & Betts Thomas & Betts PAA129


Description

Industry Description

Aluminum Type PAA - One Bolt Aluminum Parallel Groove Clamp for Wire Range Main: 4/0-2 ASCR 4/0 Str.-2 Sol. AL/CU, Tap: 4/0-2 ASCR 4/0 Str.-2 Sol. ALCU, Prefilled with Oxide Inhibitor.

Modified Industry Description

PARGRV CLAMP

AD Description

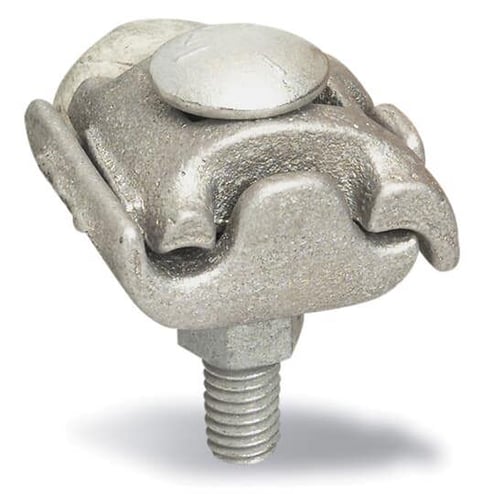

Blackburn® PAA129 2-Conductor Type PAA Dual Rated Parallel Groove Clamp, ACSR/Aluminum/Copper/Solid/Stranded Conductor, 2 to 4/0 AWG Main/Run, 2 to 4/0 AWG Tap, 1/2 in Bolt, Aluminum

Vendor Description

Blackburn® cast, forged, or formed mechanical connections, produced in economical copper and dual-rated aluminum, provide unequaled variety with a large variety of U.L. And C.S.A. Certified solutions for your electrical interface needs.

Specifications

Application
Securing Conductors
Conductor Type
ACSR/Aluminum/Copper/Solid/Stranded
Connection
Bolted
Country of Origin
IN
Dimensions
2 in L x 2 in W x 2-1/4 in H
Environmental_Conditions
All Seasons / Conditions
Finish
Bare
Insulation
None
Length1
8.2500
Material
Aluminum
Mounting
None
Number Of Conductors
2
Size
Bolt Head 3/4 inch, Bolt Size 1/2 inch, Height 2-1/4 X Length 2 X Width 2 inch
Special Features

  • 2 to 4/0 AWG main conductor range ACSR, 4/0 AWG stranded to 2 AWG solid main conductor range for aluminum/copper
  • 2 to 4/0 AWG tap conductor range ACSR, 4/0 AWG stranded to 2 AWG solid tap conductor range for aluminum/copper
  • All seasons environmental conditions
  • Dual rated for use on aluminum, ACSR and copper conductors
  • High strength, heat treated cast aluminum alloy provides secure connections
  • One-bolt clamp
  • Pre-filled with oxide inhibitor
Sub_Brand
Blackburn
Type
2-Conductor Type PAA Dual Rated
Voltage Rating
35
