O-Z/Gedney O-Z/Gedney EYAM100


Description

Industry Description

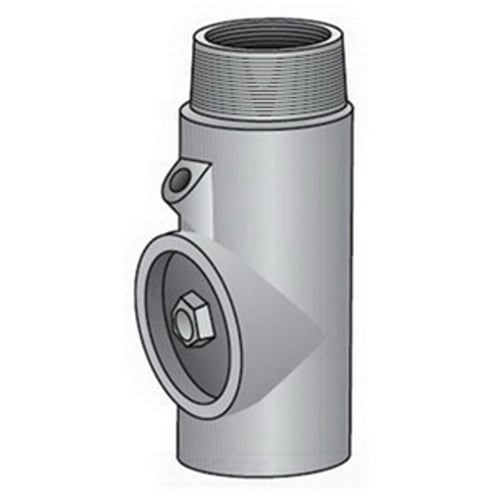

OZ-Gedney Type EYAM Vertical/Horizontal Sealing Fitting, Size: 1 IN, Malleable Iron, Finish: Zinc Electroplated, Connection: Tapered MNPT X Tapered FNPT, Dimensions: 1-3/8 IN Body Diameter X 4-13/16 IN Overall Length, 1-3/4 IN Turning Radius, 2.2

Modified Industry Description

1 IN HOR/VERT SEALING FTG

Specifications

Application
For Rigid Conduit Or IMC
Connection
Tapered MNPT X Tapered FNPT
Country of Origin
MX
Finish
Zinc Plated
Length1
7.6000
Material
Malleable
Size
1
Special Features

  • 25% conductor fill
  • Accurately tapped, tapered threads for tight, rigid joints and ground continuity
  • Large opening for damming and filling
  • Prevent passage of gases, vapors or flames from one portion of conduit system to another
  • Prevent pressure piling within conduit system
  • Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub
  • Required in class I, division 1 and 2 locations at the boundary where conduit leaves classified location
  • Required in class I, division 1 and 2 locations where 2 in or larger conduit enters enclosure, fitting housing terminals, splices or taps
  • Required in class I, division 1 and 2 locations where two or more enclosures are connected by 36 in or less conduit, seal must be located within 18 in of either enclosure
  • Required in class I, division 1 and 2 locations within 18 in of enclosures containing apparatus that may cause arcs, sparks or high temperatures
  • Required where cables (which exceed rate of gas or vapor transmission permitted for seals) are used in class I, division 2 locations
  • Restrict any explosion to the sealed off enclosure
  • Smooth, rounded integral bushing in each hub to protect conductor insulation
  • To minimize the passage of gases and vapors and prevent the passage of flames from one portion of the electrical system to another through the conduit
  • To seal conduits in vertical or horizontal runs
  • Use with type EYC sealing compound and type EYF fiber
Standard
Third Party Certification: UL File Number E-34997, CSA 009795 Suitable For Wet Locations, UL Listed Using: O-Z/Gedney EYC Sealing Compound Or Crouse-Hinds Chico Compound, CSA Certified Sealing Compound, Class I, Division 1, 2, Groups A, B, C, D, Class I, Zone 1, 2, Groups IIA, IIB, IIC, Class II, Division 1, 2, Groups E, F, G, Class III, Applicable Third Party Standards: UL 886, CSA C22.2 Number 30 NEC Articles 500-503 & 505, Military Specification: Mil-F-28675
Type
EYAM Vertical/Horizontal Sealing Fitting
