Burndy Burndy PAT750LI


Description

Industry Description

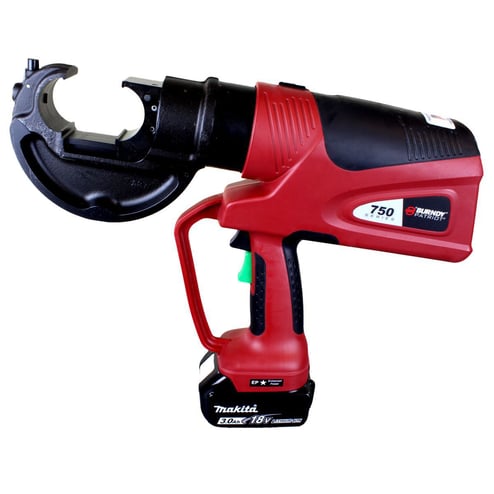

PATRIOT® 12-Ton C-Head Battery Crimper, Hydraulic Self-Contained, (2) 3.0Ah 18V Li-ion Batteries, 120V-AC Charger, Hard Case

Modified Industry Description

CRIMPING TOOL BATTERY ACTUATED HYDRAULIC 12 TON 18VDC

AD Description

BURNDY® PATRIOT® CRIMPER PAT750LI Hydraulic Self-Contained Cordless Crimper, 8 AWG to 500 kcmil, 8 AWG to 587.2 kcmil Crimping, 12 ton Crimping, 18 VDC, Li-Ion Battery, 15-3/4 in OAL

Specifications

Application
For Use On: 8 AWG Solid - 500 KCMIL Copper, 8 AWG Solid - 587.2 KCMIL Aluminum, 4 AWG - 556.5 KCMIL ACSR (Tension Sleeves), 14 AWG Solid - 500 KCMIL Copper, 8 AWG - 500 KCMIL Aluminum (Taps), Aerial Cable: 6 AWG - 500 KCMIL, 8 AWG - 750 KCMIL Aluminum And Copper, 4 AWG - 556 KCMIL ACSR (Terminals And Splices), 8 AWG - 500 KCMIL Copper (HYGROUND Cable/Ground Rod)
Battery
18 V DC Li-Ion
Brand Name
Burndy
Country of Origin
US
Crimping_Force
12 TON
Overall_Length
15-3/4
Package_Quantity
1
Power_Source
120V-AC Charger
Size
15.75 in x 3.50 in x 13.50 in
Special Features

  • 8 AWG solid to 500 kcmil copper tension sleeves, 8 AWG solid to 587.2 kcmil aluminum, 4 AWG to 556.5 kcmil ACSR, 14 AWG solid to 500 kcmil copper taps, 8 AWG to 500 kcmil aluminum, 6 AWG to 500 kcmil aerial copper cable, 8 AWG to 750 kcmil copper terminals and splices, 8 AWG to 750 kcmil aluminum, 4 AWG to 556 kcmil ACSR, 8 AWG to 500 kcmil Hyground copper, 1/2 to 1 in Dia ground rods crimp range
  • Durable high impact formed carrying case
  • Ergonomically balanced tool design
  • Field proven electronics for ultimate reliability in the harshest environments
  • Refined hydraulic system for ultra performance, speed and reliability
  • State of the art crimping head design, 360 deg head rotation
  • True, one-handed operation for advance, retract, and hold
Standard
RoHS Compatible with Exemption
Sub_Brand
Burndy
Type
Battery Actuated, Hydraulic Self Contained
