RAB Lighting RAB Lighting FXH100TQTW

RAB Lighting FXH100TQTW

Kirby Risk #: 2376192

UPC: 1981397246, 01981397246

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: RAB Lighting

Description

AD Description

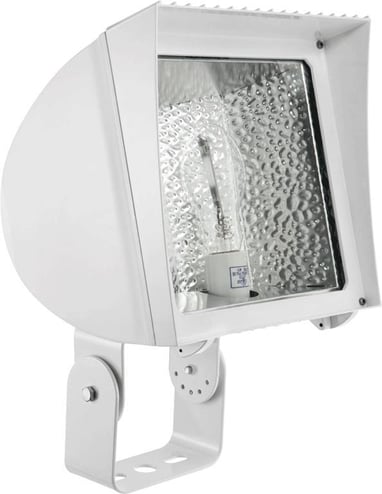

RAB FXH100TQTW FlexFloodlight,) HID/ED17 Metal Halide Lamp, 129 W Fixture, 120/208/240/277 VAC, White Housing

Amperage Rating	1.2/0.7/0.7/0.8/0.6/0.5 A
Country of Origin	CN
Dimensions	15 in H x 9-3/4 in W x 10-1/2 in D
Lamp_Type	HID ED17 Metal Halide
Lumens	9000
Mounting_Type	Trunnion
Special Features	78% efficiency and 70 LPW efficacy Anodized aluminum reflector rotates for horizontal or vertical lamp position Fins for heat dissipation extend lamp and ballast life Integra hood glare shield for friendly lighting when properly aimed Medium base 4 kV pulse rated socket Precision die cast aluminum housing and lens frame with durable polyester powder coating Silicone gasket for durable weatherproofing and easy relamping Suitable for ground mounting Two field adjustable socket positions allow fine tuning of beam spread Without Photocell
Voltage Rating	120/208/240/277
