Intermatic Intermatic IG1240RC3
Intermatic IG1240RC3
Kirby Risk #: 2374368
UPC: 07827512439, 078275124394, 00078275124394
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Intermatic
Description
Industry Description
The 120/240 VAC Single (Split) Phase, Residential Hardwired SPD, box packaging. ANSI/UL1449 3rd Edition. The IG Series Surge Protective Devices are Designed for a Variety of Type 1 and Type 2 Applications, Type 1 Applications Include Outdoor Installations Before Service Entrances and Utility Meter Cabinets, Type 2 Applications Include Installations After Service Entrances
Modified Industry Description
120/240V SURGE WHOLE HOUSE TYPE 1 & 2
AD Description

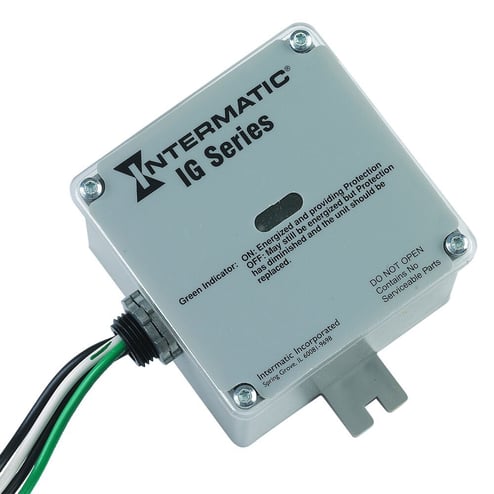

Intermatic® PanelGuard® IG1240RC3 IG Series Surge Protective Device With Plastic Case, 120/240 VAC, 50/60 Hz, 50 kA SCCR, 2 ph Phase
Vendor Description
The IG series surge protective device is designed for a variety of Type 1 and Type 2 applications. Type 1 applications include outdoor installations before service entrances and utility meter cabinets. Type 2 applications include installations after service entrances. CSA certified to ANSI/UL 1449 3rd edition, the IG1200RC3 is approved for residential/light commercial services (AC power).
Specifications
| Brand Name |
Intermatic
|
|---|---|
| Country of Origin |
MX
|
| Environmental_Conditions |
-35 to 85 deg C Operating Temperature
|
| Frequency_Rating |
50/60
|
| Material |
Plastic
|
| Mounting |
Surface with Brackets
|
| Nominal_Discharge_Current |
20
|
| Phase |
2
|
| Short_Circuit_Rating |
50kA
|
| Size |
4.20 HEIGHT X 4.20 WIDTH X 3.33 DEPTH IN, 107 HEIGHT X 107 WIDTH X 85 DEPTH MM
|
| Special Features |
|
| Standard |
CSA - UL 1449 3rd Edtion
|
| Sub_Brand |
Intermatic
|
| Type_Of_Indicators |
Green LED Indicator
|
| Type |
Type I or II
|
| Voltage Rating |
120/240
|
| Width_2 |
8.2500
|
