Lithonia Lighting Lithonia Lighting IBZT5 6


Description

Industry Description

Contractor Select Fluorescent High Bay - T5HO, Six lamps, SKU - 200R3K

Modified Industry Description

6 LAMP WIDE DISTRIBUTION FLUORESCENT high bay, high output

AD Description

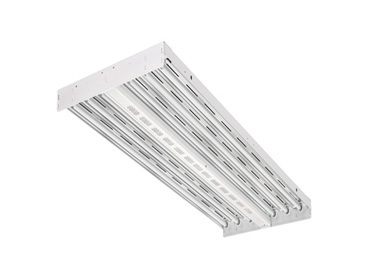

Lithonia Lighting® I-BEAM® IBZT5 6 Contractor Select Narrow Distribution High Bay Lighting, (6) T5 Fluorescent Lamp, 120 to 277 VAC, High Gloss/Baked White Enamel Housing

Vendor Description

The I-BEAM® fluorescent high Bay™ is an ideal one for one replacement of common metal halide high Bay™ systems. The fluorescent I-BEAM® fixture performs at mounting heights from 15 to 40 ft. Certain airborne contaminants can diminish integrity of acrylic.

Specifications

Application
Open Office, Retail, Sports and Recreation, Warehouse/Storage
Ballast_Type
Electronic/Programmed Start
Brand Name
Lithonia Lighting
Color
White
Country of Origin
MX
Dimensions
48-1/8 in L x 18-1/8 in W x 2-3/8 in D
DimensionsInches
48-1/8 X 13-1/4 X 2-3/8
Environmental_Conditions
Indoor
Finish
Gloss
Housing_Material
Steel
Lamp_Included
False
Lamp_Type
T5 Fluorescent
Lamp_Wattage
54
Material
Steel
Mounting
Suspended
Number_Of_Lamps
6
Socket_Type
Medium: Bi-Pin
Special Features

  • Channel is formed of heavy duty code gauge steel to stand-up to the most demanding elements
  • Channel is high gloss white baked enamel, five stage iron phosphate pretreatment ensures superior paint adhesion and rust resistance
  • Lamp holder assembly protects from incidental damage to reflectors during installation
  • Multi-volt 120 to 277 VAC ballast accommodates most electrical requirements
  • Narrow distribution is ideal for narrow or aisle lighting applications and features precision formed segmented optics utilizing Alanod® MIRO® 4 specular aluminum reflectors
  • Provides 95% reflectivity and warranted for 25 years
  • Rugged fixture construction coupled with excellent fixture performance
  • Sockets include secure positioning rotating collars with enclosed contacts, access plate on the back of the channel housing allows quick and easy wiring
  • Suitable for suspension by chain, cable or hook mono point hanger, access plate on the back of channel housing allows for quick and easy wiring
  • Thermally protected, resetting, class P, HPF, a sound rated electronic ballast, AWM TFM or THHN® wire used throughout rated for required temperature ranges, ballast disconnect (BDP) is standard unless EL14 or cordset is requested
  • Wide distribution includes high reflectance white finish for general or open areas
Standard
C-UL-US
Sub_Brand
Lithonia Lighting
Type
Contractor Select Narrow Distribution
Voltage Rating
120 to 277
Wattage
54
