Burndy Burndy KVS40A


Description

Industry Description

High-conductivity, non-copper bearing aluminum alloy connector. Spacer bar separates dissimilar conductors. Intended for heavy duty applications,conductor range,Run Cu and Al :400-800.

AD Description

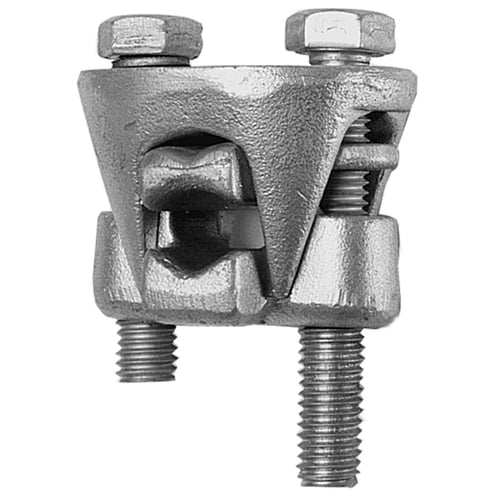

BURNDY® OKLIP™ KVS40A Mechanical Connector, 336.4 to 800 kcmil, 3/0 AWG to 800 kcmil Commercial Aluminum/Stranded Copper Conductor, 1/2 in, Aluminum Alloy

Specifications

Application
For All Combinations Of Copper, Aluminum, ACSR, AAAC And 5005
Country of Origin
US
Length1
2.4400
Material
Aluminum
Special Features

  • 1.036 in maximum run and tap diameter
  • 3-piece, high conductivity, non-copper bearing aluminum alloy connector with thick spacer and aluminum hardware
  • ACSR, 5005, AAAC run and tap conductor
  • Belled entrances prevent chafing and permit easier assembly of conductors
  • Intended for heavy duty applications
  • Longer peened bolt permits swivel action for easier installation
  • Neoprene ring prevents loss of shorter bolt
  • Penetrox joint compound recommended with aluminum and ACSR, conductor
  • Recommended for heavy duty dissimilar metal applications
  • Spacer separates conductors and provides long contact length
Sub_Brand
OKLIP
Type
KVS
