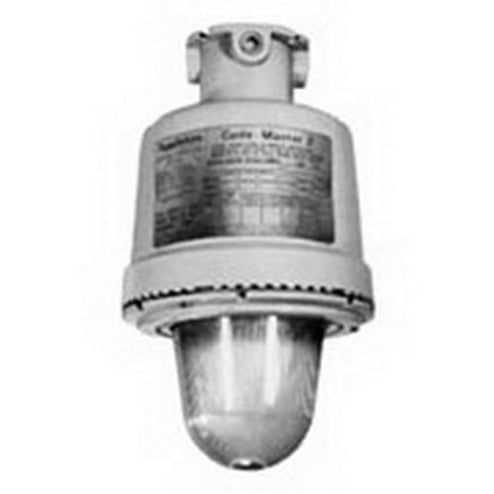

Appleton Appleton CMBP400MT


Description

Industry Description

Code Master 2 Factory Sealed HID Luminaire, Lamp Type: 400 WTT 34000 LM Mogul Pulse Start Metal Halide, Lamp Wattage: 400 WTT, Voltage Rating: 120/208/240/277 V, Number Of Lamps: 1, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum

Modified Industry Description

400W PSMH MT CODE 2

AD Description

Appleton® Code Master™ 2 CMBP400MT Light Fixture, (1) Metal Halide Pulse Start Lamp, 400 W Fixture, 120/208/240/277 VAC, Epoxy Powder Coated Housing

Specifications

Amperage Rating
1.5 to 1.75 A
Application
For Use In Chemical And Petrochemical Plants, Such As Manufacturers Of Plastics, Paints And Thinners; In Refineries; And In Other Process Areas Where Ignitable Vapors, Dust, Moisture, Marine And Corrosive Elements May Be Present, Wet Locations
Country of Origin
MX
Dimensions
12 in L x 12 in W x 20-3/8 in H
Lamp_Type
Metal Halide/Pulse Start
Length1
24.0000
Lumens
34000
Material
Copperfree (4/10 Of 1 PCT Maximum) Aluminum Body And Guard
Mounting_Type
Ceiling
Series
CM Series
Special Features

  • Acme double-lead threads speed installation and fixture removal from mounting hood only half as many turns are required as for single lead threads, threads do not stick or gall, eliminating problems often encountered with single lead threads during fixture unit removal
  • All threaded joints are flame-tight
  • Arrangement of heat producing components results in more efficient heat dissipation for cooler fixture operation
  • Copper free (4/10 Of 1% maximum) aluminum bodies and guard
  • Explosionproof, dust-ignition proof
  • Factory sealed, external seals not required
  • Fiberglass reinforced polyester reflectors, in standard dome, deep dome or 30 deg angle, ideal in installations where luminaries is subject to exceptionally severe corrosive atmospheres, high bay aluminum reflector is indicated in installations where mounting height from work plane ranges from 20 ft/6 m and higher
  • Fixtures operate safely in high ambient temperatures, for example, in class I areas the 150 W HPS fixture operates at a maximum temperature of 120 deg C in a 65 deg C ambient 100 deg C temperature in a 40 deg C ambient
  • Heat and impact resistant glass globes
  • Integrally ballasted HID lighting fixtures separate ballasts not required
  • Porcelain socket with nickel plated phosphor bronze screw shell, assures long trouble free operation in high ambient areas
  • Safe, easy servicing without disconnecting any wiring, wireless fixture unit easily threads off mounting hood for convenient servicing or for immediate replacement with a stand by unit
  • Strategic location of lamp socket in combination with interior prism design of the glass globe, provides optimum light distribution and control
  • Threading of fixture unit onto mounting hood makes electrical connection, only wiring required is attaching two wires to connection block in mounting hood
Standard
NEC: Class I, Division 1 And 2, Groups C, D, Class II, Division 1 And 2, Groups E, F, G, Class III; CSA: Class I, Division 1 And 2, Groups B, C, D, Class I, Zone 1 And 2; IIB, IIA, Class II, Division 1, Groups E, F, G, Class II, Division 2, Groups F, G, Class II; Type 4X; Exd IIB, Zone 1; UL 1598, 844, E1044; CSA C22.2 No.250, C22.2 No.137, 025428
Sub_Brand
Appleton
Type
Factory Sealed HID Luminaire
Voltage Rating
120/208/240/277
