Hoffman Hoffman VHDS26


Description

Industry Description

Syspend VHDS-Motion Arm, Type 4X, 10.18x30.65x4.86, SS Type 304

Modified Industry Description

VHDS MOTION ARM 26 IN

AD Description

Hoffman SYSPEND™ VHDS26 VM3 Type 4X Corrosion-Resistant Machine Top Mount VHDS Motion Arm, For Use With SYSPEND™ HMI Enclosures, 45 to 125 lb Load Capacity, 304 Stainless Steel

Vendor Description

Hoffman products are developed in world class test facilities, based on 70 years of enclosures experience and 30 years of cooling experience. They're rigorously tested for dust infiltration, thermal cycling, salt fog corrosion, vibration resistance and many other standards to ensure they perform.

Specifications

Application

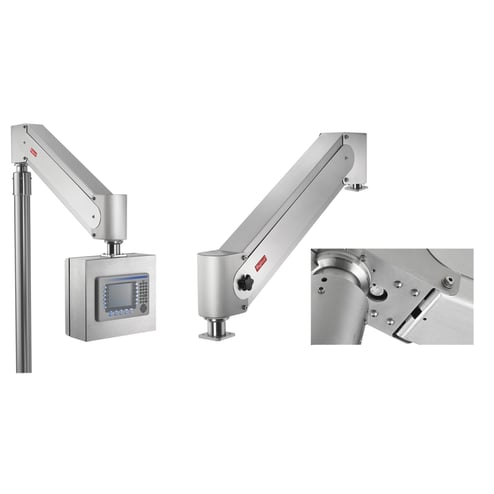

Heavy-duty, stainless steel vertical motion pendant arm provides corrosion resistance and suspends process and control equipment for easy cleaning. Operators in NEMA Type 4X environments can effortlessly lift, lower and reposition HMI enclosures using the
Color
Unpainted
Country of Origin
US
Dimensions
10.18 in H x 30.65 in W x 4.86 in D
Finish
Brushed
Length1
34.5000
Material
304 Stainless Steel
NEMA_Rating
4X Watertight, corrosion-resistant
Series
VM3
Size
10.18x30.65x4.86 in
Special Features

  • 1-1/4 in internal cable pathway maintains type 4, 4X and 12 enclosure rating and protects wires and cables
  • 26 in arm supports loads of 45 to 125 lb with 13 in of vertical height adjustment
  • Angle of gas springs is adjustable (not the pressure), allows lifting force to be increased or decreased at any time for changes in load
  • Corrosion-resistant stainless steel housing with provisions for water drainage from arm
  • Easily interfaces with Hoffman HMI enclosures using a 60 x 60 mm enclosure mounting pattern
  • Enclosure and arm can be swiveled 330 deg with swivel stops available in 30 deg increments
  • Field adjustable gas spring counterbalance allows the user to adjust lifting force by turning an adjustment mechanism under the arm
  • Gasketed mounting surfaces at both ends of arm maintain seal integrity
  • Maintains NEMA type 4 and 12 and IEC® IP66 enclosure rating when properly installed per Hoffman instructions
  • No locking enclosure handle required, enclosure stays in place after repositioning
  • No release handle is required to operate the arm
  • Tension adjustment at front of the arm provides additional fine tuning of lifting force
  • Two arm lengths are available with field adjustable counterbalances to support loads up to 125 lb
Standard
Maintains NEMA Type 4, 4X and 12 and IEC IP 66 enclosure ratings when properly installed per Hoffman instructions.
Sub_Brand
Hoffman
Type
Corrosion Resistant Machine Top Mount
