3MÂ™ Rejacketing Sleeve provides reliable safety and protection to the phase legs of 3/C shielded, medium voltage power cables from termination operating environments. Incorporated with a silicone rubber insulator and polyester braid, this sleeve is resistant to UV rays, ozone, corrosion and moisture. It is designed for use with 3M Cold Shrink QT II and QT III, Silicone Rubber Terminations.
Modified Industry Description
Rejacketing Sleeve, 10 ft coil

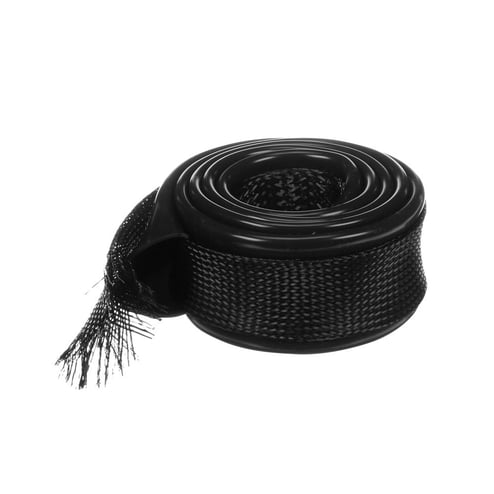

3M™ RJS-5-10FT Rejacketing Sleeve, 10 ft L, Rubber, Dark Gray
3M™ RJS Series rejacketing sleeves are designed so that 3M™ cold shrink QTII and QTIII silicone rubber termination applications can be used on 3/C (three conductor) medium voltage shielded power cables of tape shield, wire shield, armored and non-armored configurations. RJS rejacketing assemblies are a Series of silicone rubber insulators incorporating an inner expandable polyester braid designed to reduce sliding friction and deliver the insulator onto the cable. Rejacketing sleeves are designed to protect the phase legs (core) of 3/C shielded power cable from exposure to moisture, corrosion, ozone, ultra-violet radiation, physical contact and other hazards that are associated with termination operating environments. Rejacketing sleeves are designed to be used in conjunction with 3M™ cold shrink breakout boots and silicone rubber terminations.
