TPI TPI G3725120


Description

Industry Description

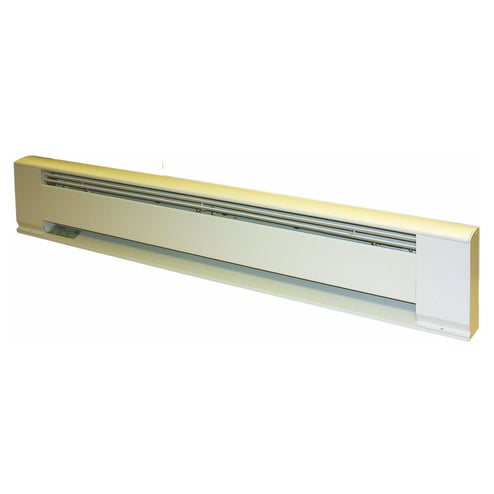

Architectural Electric Baseboard Heater, 277/240 V, 1 PH, 9/7.8 AMP, Aluminum Housing, Wall Mounting, Dimensions- 120 Length X 3Width X 8.50 Height IN, 2500/1875 WTT, BTU Rating- 8532/6375, White

Modified Industry Description

2500/1875W 277/240V, 120IN ARCH.

AD Description

TPI G3725120 3700 1-Phase Architectural Standard Electric Baseboard Heater, 8532/6375 Btu/hr Capacity, 240/277 VAC, 2500/1875 W Power Rating, Wall Mount

Specifications

Amperage Rating
7.8/9
Application
Indoor-Commercial/Some Residential/Some Industrial-277 volt apps
Country of Origin
US
Dimensions
120 X 3 X 8.50 IN
Length1
121.0000
Mounting
Wall
Phase
1
Special Features

  • An automatic thermal linear limit is used along the entire heated length of the unit
  • High quality nichrome wire encased in magnesium oxide and sealed in a stainless steel tube
  • Powder coated 12 ga heavy duty extruded aluminum housing construction with junction boxes located on each end of the unit
  • Stainless steel heating element and aluminum fins
  • Wire guard extends along the entire outlet area of the baseboard
Standard
ETLus Listed
Sub_Brand
TPI
Type
Architectural Electric Baseboard
Voltage Rating
240/277
