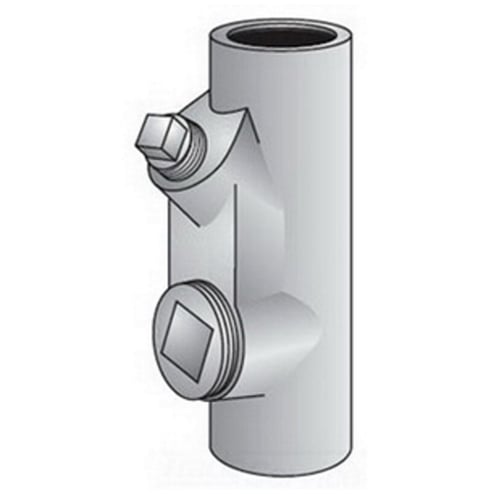

OZ-Gedney Type EYAX Vertical/Horizontal Sealing Fitting, Size: 1/2 IN, Malleable Iron, Finish: Zinc Electroplated, Connection: Tapered FNPT, Dimensions: 1-3/8 IN Body Diameter X 3-11/16 IN Overall Length, 1-1/4 IN Turning Radius, 1.5 OZ Sealing Compound Required, 1/16 OZ Approximate Amount Of Fiber/Hub Required, Third Party Certification: UL File Number E-34997, CSA 009795 Suitable For Wet Locations, UL Listed Using: O-Z/Gedney EYC Sealing Compound Or Crouse-Hinds Chico Compound, CSA Certified Sealing Compound, Class I, Division 1, 2, Groups A, B, C, D, Class I, Zone 1, 2, Groups IIA, IIB, IIC, Class II, Division 1, 2, Groups E, F, G, Class III, Applicable Third Party Standards: UL 886, CSA C22.2 Number 30, NEC Articles 500-503 & 505, Military Specification: Mil-F-28675, For Rigid Conduit Or IMC

Modified Industry Description

1/2 IN Hor/Vert Sealing Fitting

Specifications

Application
For Rigid Conduit Or IMC
Connection
Tapered FNPT
Country of Origin
MX
Dimensions
3-11/16 in L x 1-1/4 in W
Finish
Zinc Electroplated
Length1
6.3000
Material
Malleable Iron
Series
EYAX
Size
1/2
Special Features

  • Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity
  • Allow up to 40% conduit fill in compliance with the National Electrical Code
  • Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub
  • Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location
  • Required in Class I, Division 1 and 2 locations where 2 in or larger conduit enters enclosure, fitting housing terminals, splices or taps
  • Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 in or less conduit
  • Required in Class I, Division 1 and 2 locations within 18 in of enclosures containing apparatus that may cause arcs, sparks or high temperatures
  • Required where cables which exceed rate of gas or vapor transmission permitted for seals are used in Class I, Division 2 locations
  • Seal must be located within 18 in of either enclosure
  • Smooth, rounded integral bushing in each hub to protect conductor insulation
Standard
Third Party Certification: UL File Number E-34997, CSA 009795 Suitable For Wet Locations, UL Listed Using: O-Z/Gedney EYC Sealing Compound Or Crouse-Hinds Chico Compound, CSA Certified Sealing Compound, Class I, Division 1, 2, Groups A, B, C, D, Class I, Zone 1, 2, Groups IIA, IIB, IIC, Class II, Division 1, 2, Groups E, F, G, Class III, Applicable Third Party Standards: UL 886, CSA C22.2 Number 30, NEC Articles 500-503 & 505, Military Specification: Mil-F-28675
Sub_Brand
O-Z/Gedney
Type
Dust-Ignitionproof Explosionproof
