Thomas & Betts Thomas & Betts T100MCG


Description

Industry Description

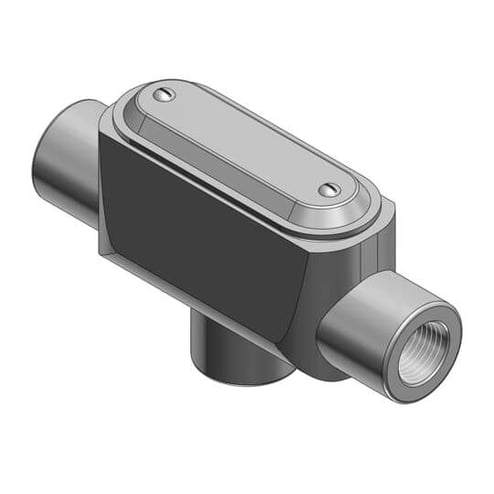

1 Inch Series 35 Unipak Type T Conduit Body, Cover and Gasket, Body Material and Finish Malleable Iron Zinc Plated with Aluminum, Acrylic Coating, Cover Material and Finish Stamped Steel Zinc Plated, Gasket Material Neoprene

Modified Industry Description

T100M WITH COVER AND GASKET

AD Description

T&B® T100MCG 35 Unipak Type T Conduit Body With Cover and Gasket, 1 in Hub, 15 cu-in Capacity, Malleable Iron, Zinc Plated with Aluminum Acrylic Coated

Specifications

Application
To Connect Conduit Sections
Color
Gray
Country of Origin
CN
Dimensions
2.65 in L x 7.05 in W x 1.8 in H
Finish
Zinc Plated/Aluminum Acrylic Painted
Length1
14.5000
Material
Malleable Iron
Series
35 Unipak
Special Features

  • Act as mounting outlets for wiring devices and lighting fixtures
  • All threaded hubs have tapered threads
  • Make 90 deg bends in conduit runs
  • Provide access to conductors for maintenance and future system changes
  • Provide easy access for splices in branch conductors
  • Serve as pulling outlets during conductor installation
  • Stamped steel/zinc plated cover, neoprene gasket
  • Suitable for use in concrete
  • To connect conduit sections
  • Zinc plated iron construction with aluminum acrylic coating provides durability
Standard
UL E2969
Sub_Brand
Thomas & Betts
Type
Type T
