Thomas & Betts Thomas & Betts TB200M


Description

Industry Description

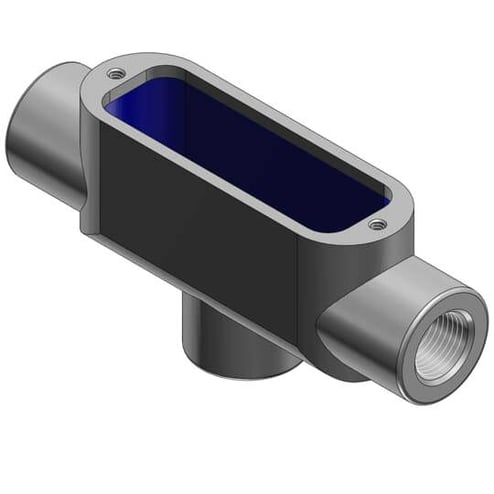

Series 35 Thru-Feed with Bottom Tap 2 Inch Conduit Body, Body Material Malleable Iron, Finish Zinc Plating with an Aluminum, Acrylic Coating for Use with Rigid/IMC Conduit

Modified Industry Description

2 INCH SERIES 35 CONDUIT BODY

AD Description

T&B® TB200M 35 Series Type TB Feed-Through Conduit Body With Bottom Tap, 2 in Hub, 76 cu-in Capacity, Malleable Iron, Zinc Plated with Aluminum Acrylic Coated

Specifications

Application
To Connect Conduit Sections
Country of Origin
CN
Finish
Zinc Plating with Aluminum Acrylic Coating
Length1
12.8700
Material
Malleable Malleable
Special Features

  • Act as mounting outlets for wiring devices and lighting fixtures
  • Features tapered, threaded NPT hubs
  • Make 90 deg bends in conduit runs
  • Provide access to conductors for maintenance and future system changes
  • Provide easy access for splices in branch conductors
  • Serve as pulling outlets during conductor installation
  • Suitable for use in concrete
  • Zinc plated iron construction with aluminum acrylic coating provides durability, impact-resistant and corrosion-resistance
Standard
UL E2969
Sub_Brand
Thomas & Betts
Type
Series 35 Conduit Body
