Appleton Appleton X28


Description

Industry Description

FM8 Grayloy-Iron UNILETS Type X Conduit Outlet Body, Hub Size: 3/4 IN, Form: 8, Length: 6.56 IN, Width: 3.31 IN, Height: 2.81 IN, Material: Grayloy-Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Color: Gray, Co

Modified Industry Description

3/4IN FM8 X TYPE GRAYLOY-IRON

AD Description

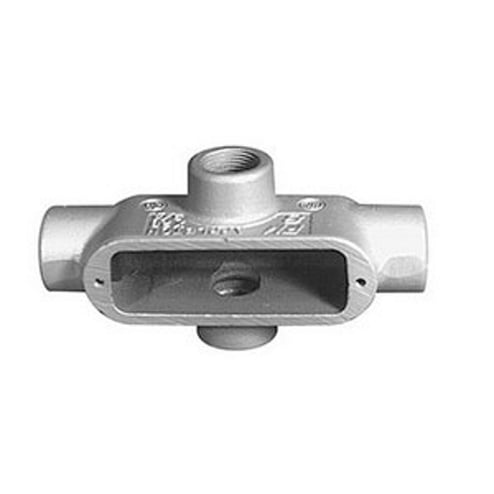

Appleton® UNILETS™ X28 Type X Conduit Outlet Body, 3/4 in Hub, Form 8, 6 cu-in, Grayloy Iron, Triple Coated

Vendor Description

Appleton® FM8™ Conduit Outlet Bodies are used to connect and change direction of conduit runs. In addition to making bends in a conduit system, they allow connections for branch runs. These conduit bodies serve as pulling fittings and permit access to conductors for splicing and maintenance.

Specifications

Application
For Use With Rigid Steel Conduit And IMC
Color
Gray
Connection
Tapered Female Threaded
Country of Origin
MX
Dimensions
6.56 in L x 3.31 in W x 2.81 in H
Enclosure
NEMA FB-1
Finish
Triple Coated
Length1
11.0000
Material
Grayloy Iron
Mounting_Type
Surface
Special Features

  • Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
  • Completely interchangeable with Crouse-Hinds Form 8™ bodies, gaskets and covers
  • Fits flush and snug against flat surfaces for more stable installation
  • Flat back design provides greater cubic content for easier wire pulling, and more room for splicing
  • Smooth hub bushings and cover openings protect conductor insulation
  • Smooth hub openings allow easy conduit joining
  • Smooth, rounded integral bushing in each hub protects conductor insulation
Standard
UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1
Sub_Brand
Appleton
Type
Type X
