Hubbell Hubbell H07591

Name: Hubbell H07591
Brand: Hubbell
SKU: 2333555
Price: 19.39 USD
Availability: InStock

Hubbell H07591

Kirby Risk #: 2333555

UPC: 78358503543, 783585035437, 00783585035437

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Hubbell

Description

Industry Description

Hubbell Wiring Device Kellems, Kellems Wire Management, LiquidtightSystem, 90 Degree Male Liquid Tight Connector, 3/4", Steel, Insulated

Modified Industry Description

90 DEG MALE L/T CONN,3/4IN, STEEL,

AD Description

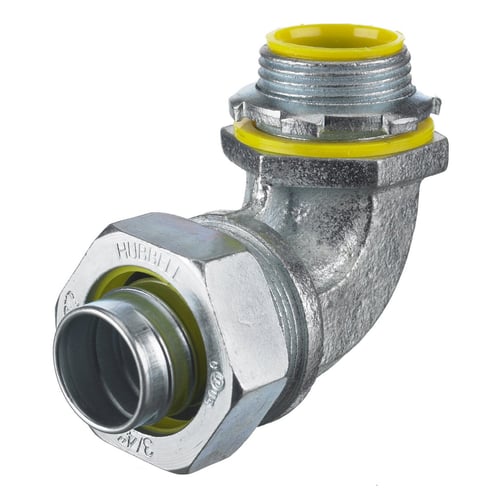

Wiring Device-Kellems H07591 Insulated Male Liquidtight Conduit Connector With Locknut, 3/4 in Trade, 90 deg, Steel, Metallic

Application	90 Degree Male
Color	Metallic
Connection	Cap Nut
Country of Origin	CN
Dimensions	1.44 in L x 1.55 in W x 1.63 in H
Environmental_Conditions	Suitable for use in wet locations when a listed sealing ring is used between box and fitting
Finish	Metallic
Length1	2.3000
Material	Steel
Mounting	Between Enclosure and Conduit
NEMA_Rating	Suitable for use in hazardous locations per Class 1 Div 2, Class II Div 1 & 2, Class III Div 1 & 2
Size	3/4 In
Special Features	-51 to 538 deg C operating temperature 0.59 in L thread Hexagonal, screw-machined steel thru 1 in and malleable iron on larger sizes Locknut has hardened steel tangs to grip securely Non integral, reusable steel ferrule is easily installed, to seal conduit NPT male thread connection Nut compresses gland-ring onto conduit Nylon gasket provides liquidtight seal at hub Split, nylon, gland-ring compresses conduit onto ferrule Tapered, machined threads fasten securely and provide additional liquidtight sealing Threaded one-piece steel body
Standard	UL 898D and UL899D
Sub_Brand	Hubbell Wiring Device-Kellems
Temperature_Rating	-40 to 225
Type	Insulated Male
