Hubbell Hubbell H1001

Name: Hubbell H1001
Brand: Hubbell
SKU: 2333448
Price: 17.54 USD
Availability: InStock

Hubbell H1001

Kirby Risk #: 2333448

UPC: 78358503514, 783585035147, 00783585035147

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Hubbell

Description

Industry Description

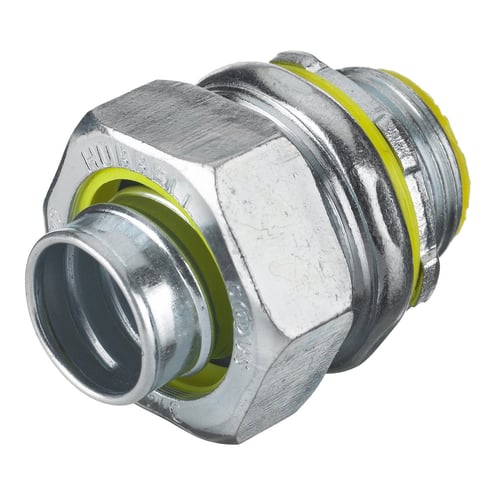

Hubbell Wiring Device Kellems, Kellems Wire Management, LiquidtightSystem, Straight Male Liquid Tight Connector, 1", Steel, Insulated

Modified Industry Description

STR MALE L/T CONN, 1IN, STEEL, INS

AD Description

Wiring Device-Kellems H1001 Insulated Straight Male Liquidtight Conduit Connector With Locknut, 1 in Trade, Steel, Metallic

Application	Straight Male
Color	Metallic
Connection	Cap Nut
Country of Origin	CN
Dimensions	1.68 in L x 1.95 in W
Environmental_Conditions	Suitable for use in wet locations when a listed sealing ring is used between box and fitting
Finish	Metallic
Length1	1.8000
Material	Steel
Mounting	Between Enclosure and Conduit
NEMA_Rating	Suitable for use in hazardous locations per Class 1 Div 2, Class II Div 1 & 2, Class III Div 1 & 2
Size	1 In
Special Features	-51 to 538 deg C operating temperature 0.66 in L thread Hexagonal, screw-machined steel thru 1 in and malleable iron on larger sizes Locknut has hardened steel tangs to grip securely Non integral, reusable steel ferrule is easily installed, to seal conduit NPT male thread connection Nut compresses gland-ring onto conduit Nylon gasket provides liquidtight seal at hub Split, nylon, gland-ring compresses conduit onto ferrule Tapered, machined threads fasten securely and provide additional liquidtight sealing Threaded one-piece steel body
Standard	UL 898D and UL899D
Sub_Brand	Hubbell Wiring Device-Kellems
Temperature_Rating	-40 to 225
Type	Insulated Straight Male
