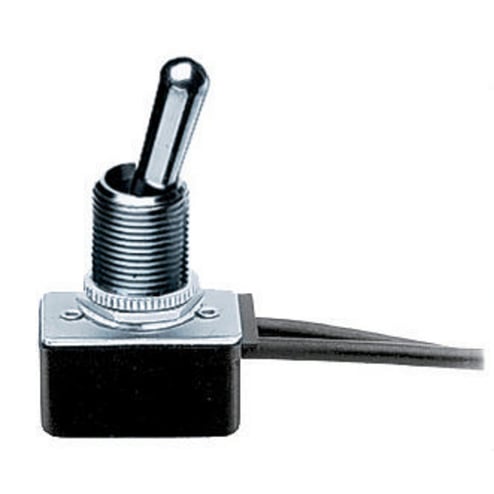

Hubbell Hubbell HBL11WL
Hubbell HBL11WL
Kirby Risk #: 2331748
UPC: 78358501672, 783585016726, 00783585016726
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Switches and Lighting Controls,Commercial Grade, Panel Mount and Specialty Switches, Bat HandleSwitches, Single Pole Single Throw 4A 250V/8A 125V, Wire Leads, NickelPlated Brass
Modified Industry Description
PANEL SW, SPST, W/LEADS
AD Description
Wiring Device-Kellems HBL11WL 2-Position Commercial Grade Heavy Duty Standard Toggle Switch, 250/125/120 VDC, 4/8/10 A, 1/3 hp, 1000 W Power Rating, SPST Contact
Specifications
| Actuator |
Bat Handle
|
|---|---|
| Amperage Rating |
4/8/10
|
| Application |
On/Off
|
| Color |
Metallic
|
| Connection |
Wire leads
|
| Country of Origin |
CN
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Interrupt_Rating |
4A 250V AC, 8A 125V, 10A 120V AC
|
| Length1 |
3.0000
|
| Material |
Metallic
|
| Mounting |
Panel Mount
|
| Number_Of_Poles |
1
|
| Operating_Temperature |
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
|
| Series |
Single Pole/Single Throw
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
UL Recognized
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Bat Handle
|
| Voltage Rating |
120/125/250
|
| Wattage |
1,000
|
